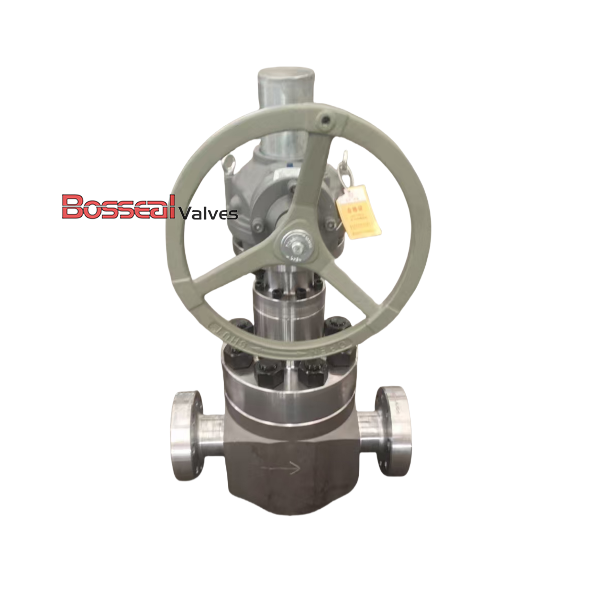

Alloy Steel Globe Valves, API 6A, AISI 4130, 11 IN, 5000 PSI

Key Specifications / Features

Model No. : GLV-183103017

As a professional alloy steel globe valve factory in China, we manufacture valves designed to API 6A standards for high-pressure and severe service conditions. Built with a strong AISI 4130 alloy steel body, these globe valves are engineered for reliability and durability in critical applications. Available in 11-inch size with a 5000 PSI rating, they ensure safe and efficient flow control. Trim options include 17-4PH stainless steel or Inconel for superior sealing performance. Featuring gear operation, RTJ or BW end connections, and a pressure seal bonnet for enhanced safety.


Detail Information

Valve Description:
183103017 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
Drawing for API 6A Globe Valves
