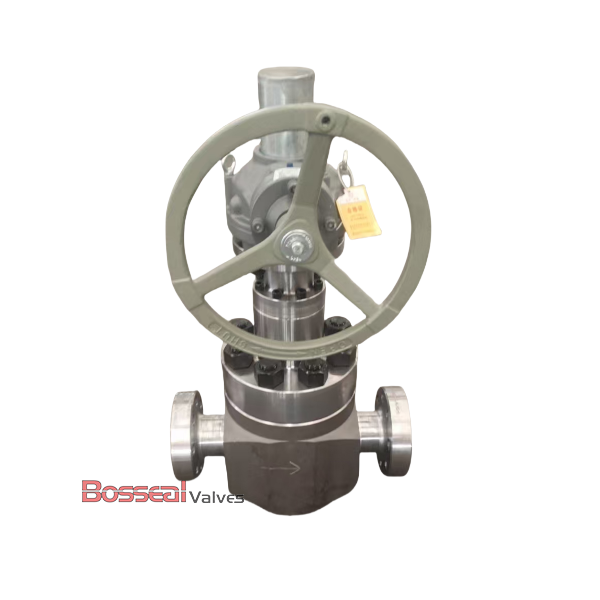

Alloy Steel Globe Valves, API 6A, AISI 4130, A694 F60, PSB

Key Specifications / Features

Model No. : GLV-183103006

As a leading alloy steel globe valve manufacturer in China, we produce high-performance valves designed to API 6A standards, ensuring reliability in critical service conditions. Constructed with robust alloy steel materials such as AISI 4130 and ASTM A694 F60, these valves feature a pressure seal bonnet for enhanced strength and leak-tight performance under high pressure. Equipped with trims in 17-4PH stainless steel and seating options in TCC or STL, they provide excellent durability and sealing capability. Available with RTJ end connections, our valves comply with PSL through PSL3G and PR2 requirements.


Detail Information

Valve Description:
183103006 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
