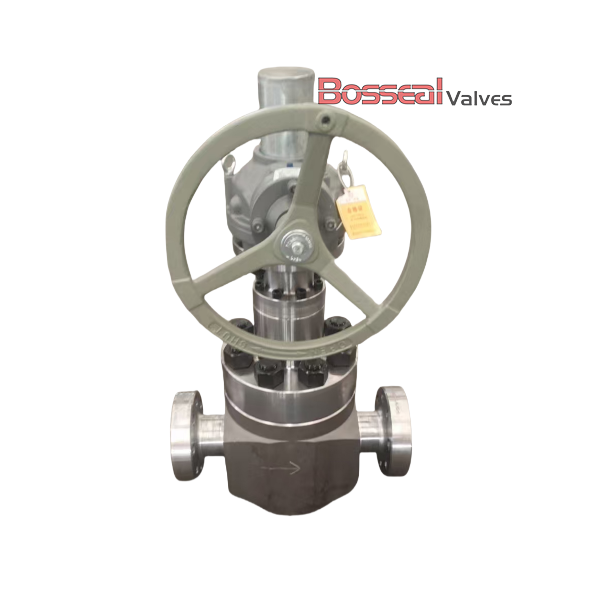

API 6A Globe Valve, AISI 4130, 3-1/8 Inch, 10000 PSI, PSB

Key Specifications / Features

Model No. : GLV-183103026

As a trusted 10,000 PSI globe valve supplier in China, we provide valves designed to API 6A standards for demanding oilfield and industrial applications. The valve body is crafted from premium materials including AISI 4130, ASTM A694 F60/F65, or Inconel, ensuring exceptional strength and corrosion resistance. It features trims in F51, 17-4PH, or Inconel for reliable sealing and extended service life under high-pressure conditions. With a size of 3-1/8 inches and a pressure seal bonnet design, this valve delivers superior durability, performance, and safety in critical operations.


Detail Information

Valve Description:
183103026 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
End Connection: RTJ, BW, and Hub
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
