API 594 Dual Plate Check Valve, Al-bronze, 2 IN, CL150, Wafer

Name: API 594 Dual Plate Check Valve, Al-bronze, 2 IN, CL150, Wafer
SKU: cv-187303001
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CV-187303001

We are a trusted manufacturer of dual plate check valves designed to meet API 594 standards. This 2-inch (DN50) non-return valve features a durable aluminum bronze ASTM B148 C95800 body and disc, ensuring excellent corrosion resistance and long service life. Built with wafer-type ends, it is compact and easy to install between flanges. Rated for Class 150 LB, this valve is ideal for preventing backflow in marine, offshore, and industrial applications. Precision-engineered for reliability and performance, our dual plate check valves offer a dependable flow control solution.

Request a quote

Tags:

API 594 Check Valve

Al-bronze Check Valve

ASTM B148 C95800 Check Valve

Detail Information

Valve Description:
187303001 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 2 Inch, DN50
Nominal Class: 150 LB, PN20
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)

Next: Aluminum Bronze Dual Plate Check Valves, API 594, 2-1/2 Inch

Previous: Flanged Check Valve, A890 4A, 14 IN, 2500 LB, API 6D, 594

Similar Products

Viton Seat Check Valve, 2 IN, 150 LB, WCB, API 594, CF8M Disc

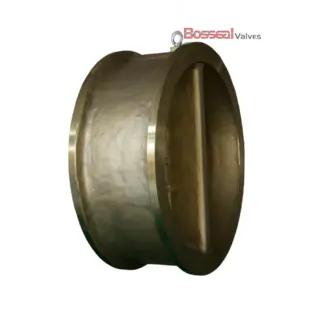

Dual Disc Wafer Check Valve, API 594, C95800, 26 IN, 150 LB

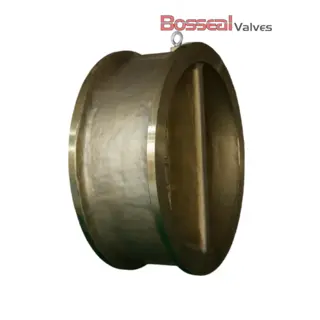

API 594 Al-bronze Check Valve, C95800, 12IN, 150 LB, Flanged
