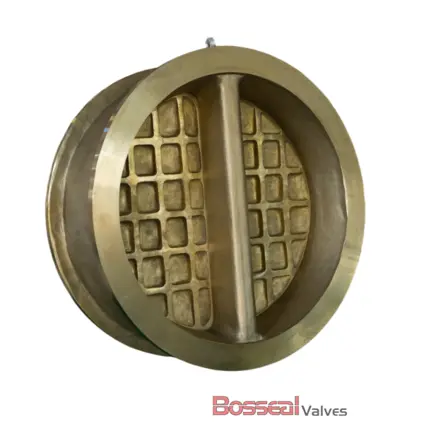

API 594 Flanged Check Valve, Al-bronze C95800, 42 IN, CL150

Name: API 594 Flanged Check Valve, Al-bronze C95800, 42 IN, CL150
SKU: cv-187303020
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CV-187303020

As a trusted flanged check valve supplier from China, we offer high-performance valves built to API 594 design standards. This 42-inch (DN1050) valve features a durable aluminum bronze body and disc made from ASTM B148 C95800, ensuring exceptional strength and corrosion resistance. The spring-loaded, dual plate design provides efficient backflow prevention, while the Class 150 LB rating ensures reliable performance in demanding applications. Perfect for various industrial needs, this valve is engineered for long-lasting durability, offering optimal protection and performance in harsh environments.

Request a quote

Tags:

API 594 Check Valve

Flanged Check Valve

Al-bronze Check Valve

Detail Information

Valve Description:
187303020 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 42 Inch, DN1050
Nominal Class: 150 LB
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
