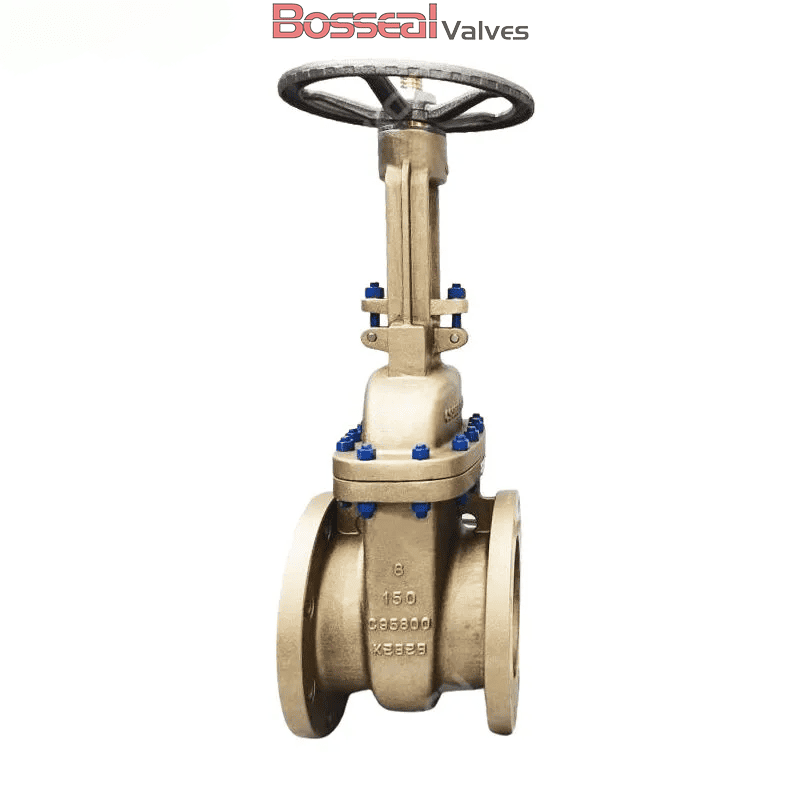

API 600 Aluminium Bronze Gate Valves, C95800, 26 IN, 150 LB

Key Specifications / Features

Model no. : GTV-187304014

We are a leading manufacturer of aluminum bronze gate valves designed by API 600 standards. These valves feature a durable ASTM B148 C95800 aluminum bronze body and trim, ensuring excellent corrosion resistance in marine and offshore applications. Available in sizes up to 26 inches and rated for Class 150 LB, they come with flat face (FF) or raised face (RF) flanged ends to suit various installation needs. The design includes a bolted bonnet and OS\&Y (outside screw and yoke) configuration for reliable operation and easy maintenance in demanding environments.


Detail Information

Valve Description:
187304014 Aluminium Bronze Gate Valve
Design Standard: API 600
Nominal Size: 26 Inch, DN650
Nominal Class: Class 150 LB, Class 300 LB
Bore Type: Standard Bore(API 600)
Structure: Bolted Bonnet/Pressure Seal Bonnet
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: FF or RF Flanged
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service


Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor


Name*
E-mail*
Rate*
Comments*

Next: Flexible Wedge Gate Valve, API 600, B148 C95800, 28 Inches

Previous: API 600 Aluminum Bronze Gate Valve, C95800, 24 IN, CL150 LB

Similar Products
