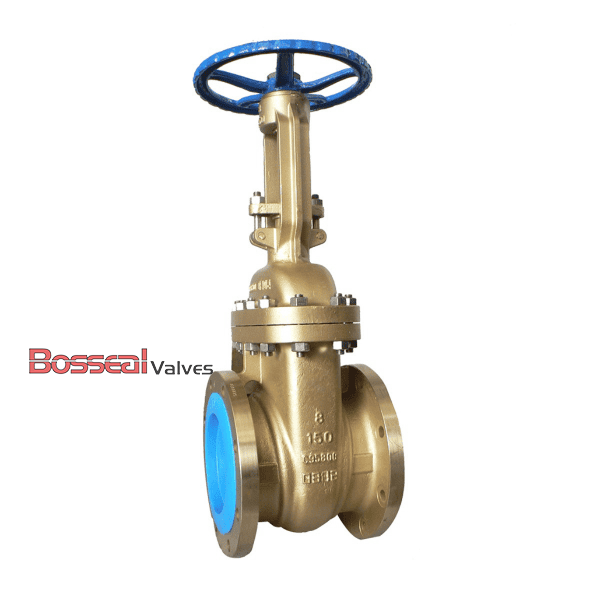

API 600 Gate Valves, ASTM B148 C95800, 12 Inch, RF Flanged

Key Specifications / Features

Model no. : GTV-187304029

Designed to API 600 standards, this 12-inch (DN300) gate valve features a durable aluminum bronze body made from ASTM B148 C95800, offering excellent resistance to corrosion in harsh environments. With a Class 300 LB pressure rating, it is equipped with raised face (RF) flanged ends for dependable and flexible installation. The bolted bonnet and outside screw and yoke (OS&Y) configuration ensure secure operation and ease of maintenance. Ideal for marine, offshore, and heavy-duty industrial applications. Manufactured by a reliable aluminum bronze gate valve supplier in China.


Detail Information

Valve Description:
187304029 Aluminum Bronze Gate Valve.
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 12 Inch, DN300
Nominal Class: Class 300 LB
Test and Inspection: API 598
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service


Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2-64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor
