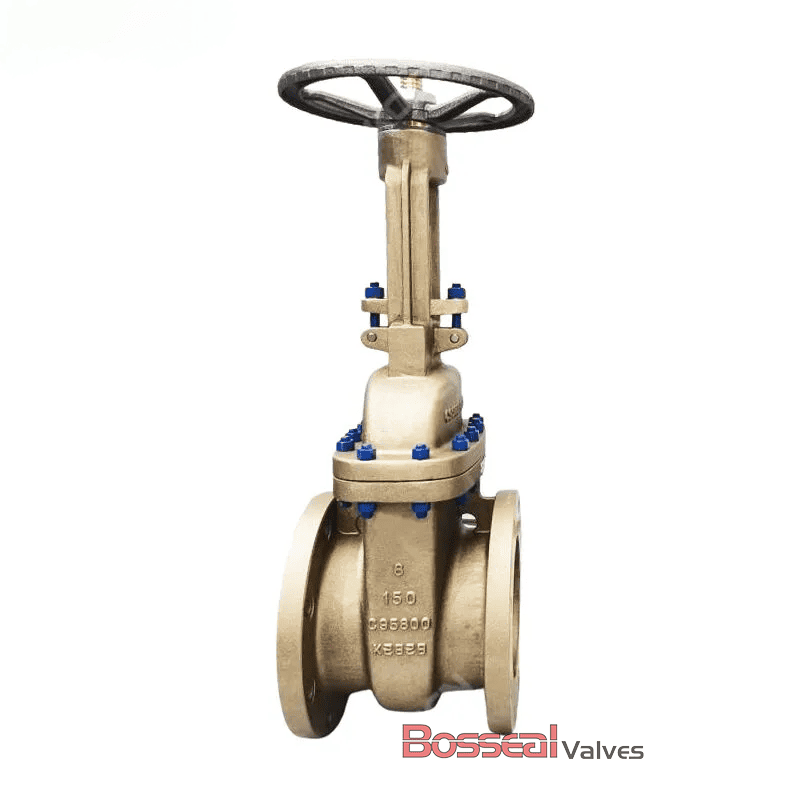

API 600 PSB Gate Valves, ASTM B148 C95800, 40 IN, 150 LB, RF

Key Specifications / Features

Model No. : GTV-187304019

We are a trusted supplier of pressure seal gate valves in China, offering designs compliant with API 600 standards. Constructed from corrosion-resistant aluminum bronze ASTM B148 C95800, these valves ensure long-lasting durability in harsh environments. Featuring a 40-inch size and Class 150 LB pressure rating, they include a flexible wedge for reliable sealing, and an outside screw and yoke (OS\&Y) design for easy maintenance. The valves are equipped with raised face (RF) flanged ends, making them ideal for demanding marine, offshore, and industrial applications requiring robust performance.


Detail Information

Valve Description:
187304019 Aluminum Bronze Gate Valve.
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 40 Inch
Nominal Class: Class 150 LB, Class 300 LB
Bore Type: Standard Bore(API 600)
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor

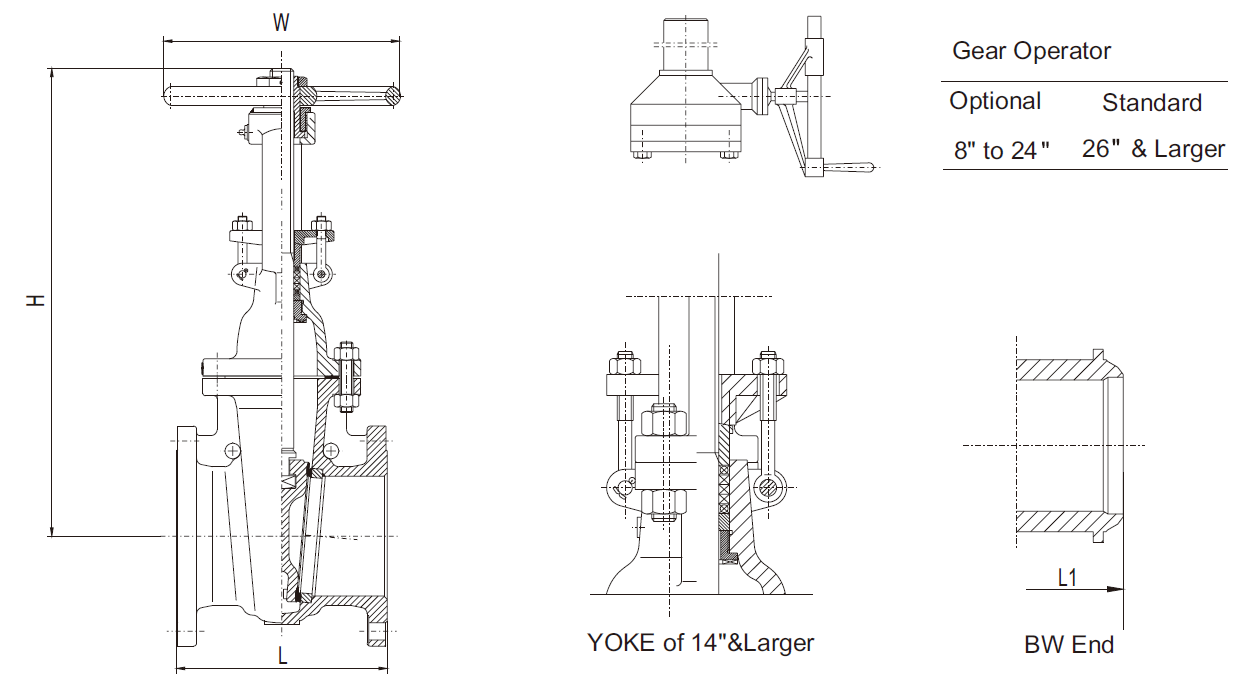

Drawing for Gate Valve
