Key Specifications / Features
Model No. : 1BB8SNA105
We Provide Floating Ball Valves, Three Pieces body, Extended Bonnet, API 608, 1 Inch, 800 LB, SW + 100 mm Nipple X NPT Ends, ASTM A105, ISO 17292, API 6D, and Lever Operated.

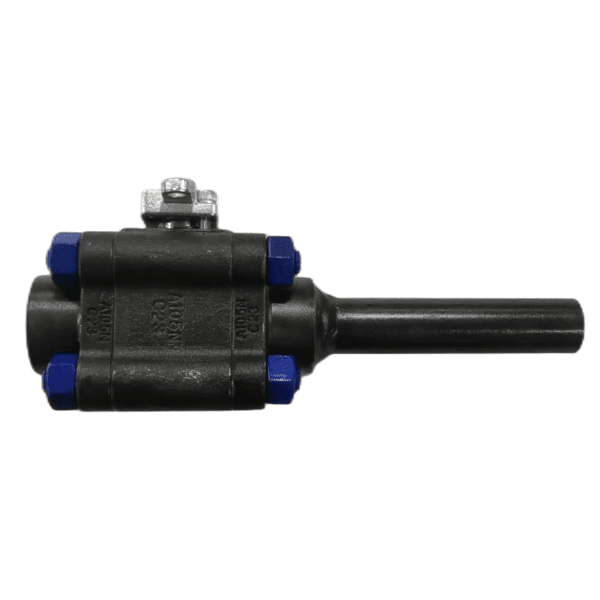

API 608 Floating Ball Valve, 1 Inch, 800 LB, SW + NPT, A105
Detail Information
Product Item: Floating Ball Valve
Model No.: 1BB8SNA105
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat, Extended Bonnet
Nominal size: 1 Inch
Nominal class: 800 LB
Bore Type: Full Bore
End Connection: SW+100mm nipple x NPT Threaded
Operation: Lever Lockable
Body Material: ASTM A105
Trim Material: ASTM A182 F316, RPTFE
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: 150 - 2500 LB
End connection: SW, NPT
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
