UNS S32205 Floating Ball Valve, 3/4 Inch, 2000 PSI, NPT

Detail Information
Product Item: Floating Ball Valve
Model No.: 0.75BB8N4A
Design Standard: API 608, ISO 17292
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 3/4 Inch
Nominal class: 2000psi/800LB
Bore Type: Full Bore
End Connection: NPT Threaded
Operation: Lever Lockable
Body Material: UNS S32205
Trim Material: ASTM A182 F51, RPTFE
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device, ISO 5211 mounting pad

Product Range
Body material: Duplex, Super Duplex, Stainless Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: 150 - 2500 LB
End connection: SW, NPT
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator

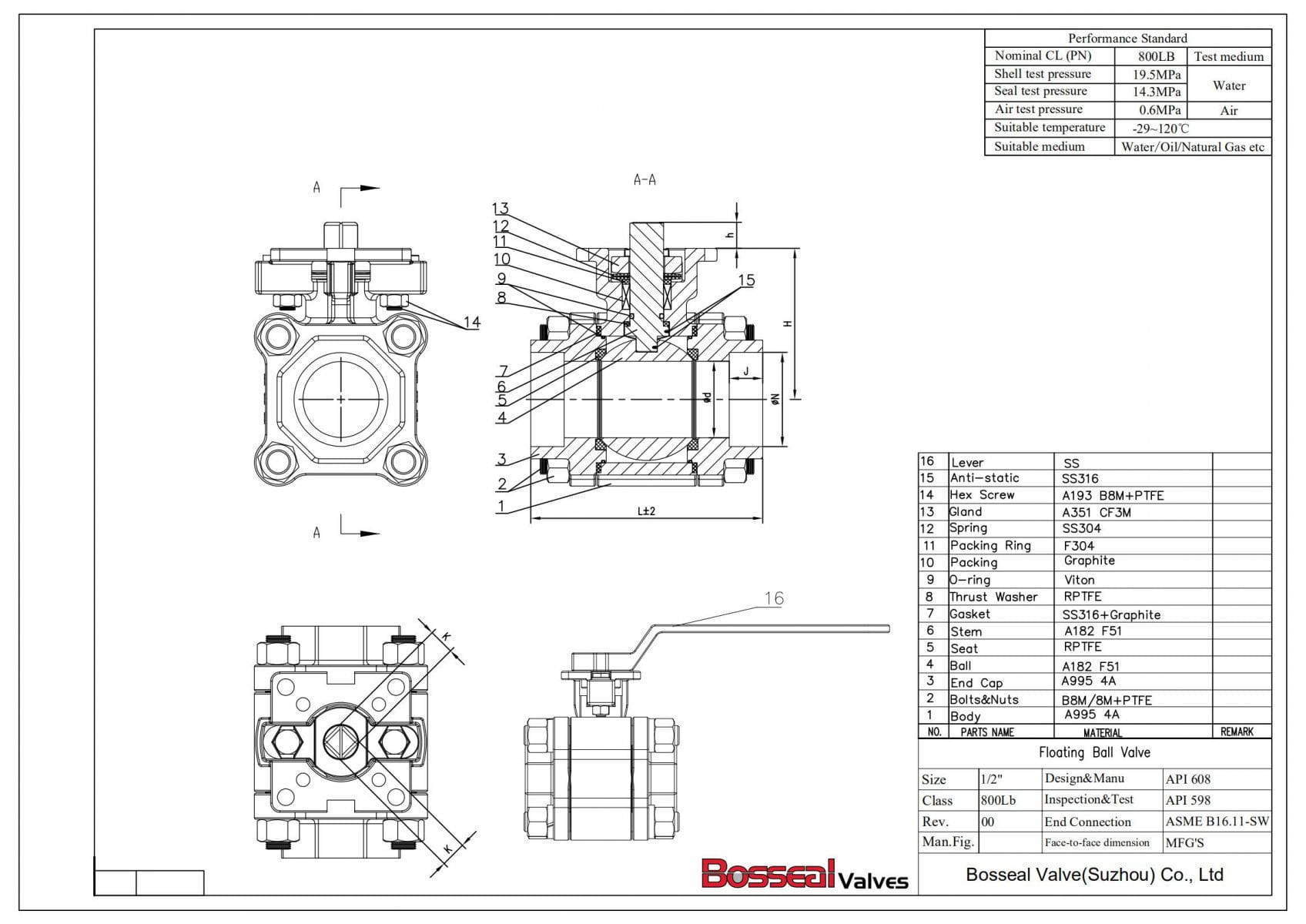

UNS S32205 Floating Ball Valve Tech Drawing
