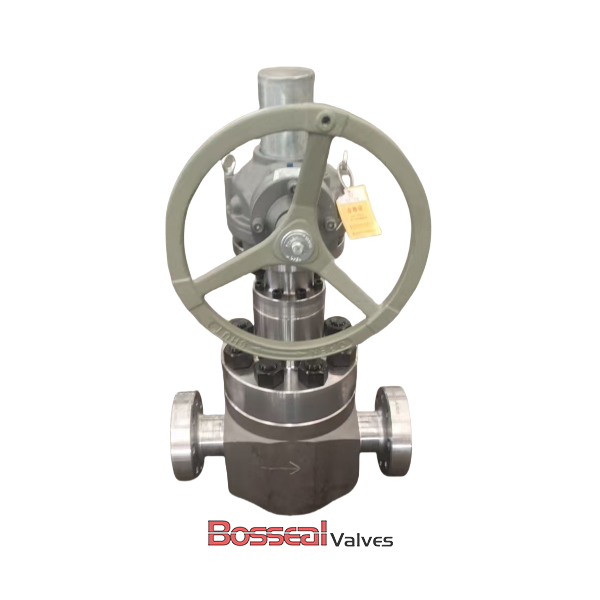

API 6A Alloy Steel Globe Valve, AISI 4130, 5-1/8 IN, 10000 PSI

Key Specifications / Features

Model No. : GLV-183103030

As a professional China alloy steel globe valve manufacturer, we specialize in producing high-performance valves designed to meet API 6A standards for the oil and gas industry. Our 5-1/8 inch globe valves are built with durable body materials including AISI 4130, F60, F65, and Inconel, providing excellent strength and resistance to extreme conditions. The trim is available in 4140, F51, or 17-4PH stainless steel, ensuring superior wear and corrosion resistance. Engineered for 10,000 PSI working pressure, these valves come with RTJ or butt-weld (BW) end connections. Featuring gear operation, they deliver reliable sealing, precise flow control, and long service life.


Detail Information

Valve Description:
183103030 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
