Key Specifications / Features
Model No. : GLV-183103011

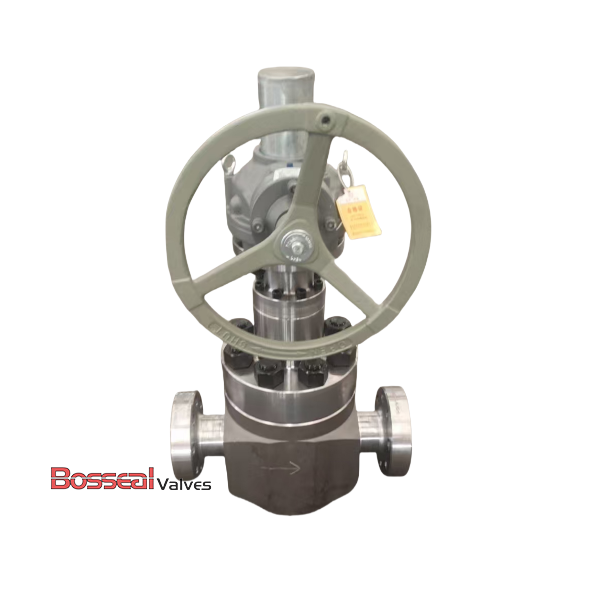

As a trusted Alloy Steel Globe Valve manufacturer in China, we provide high-performance valves designed to meet API 6A standards. Our globe valves are engineered with robust body materials such as F60, F65, 4130 alloy steel, and Inconel, ensuring durability in demanding environments. Equipped with trims in 17-4PH stainless steel or Inconel, they deliver reliable sealing and resistance to wear. Available in 6-1/8 inch size, rated for 5000 PSI, with RTJ or BW end connections, these valves ensure safe and efficient flow control.
Valve Description:
183103011 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A
Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
