Key Specifications / Features
Model No. : GLV-183103012

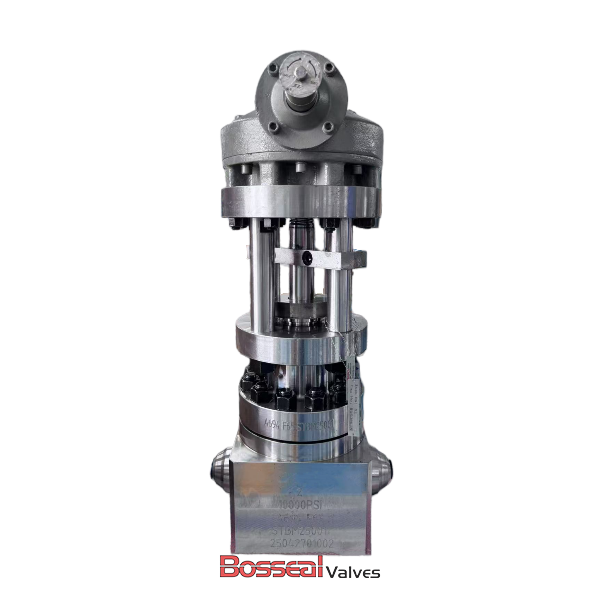

As a leading AISI 4130 Globe Valve supplier in China, we offer precision-engineered valves built to API 6A standards for demanding oil and gas applications. These valves feature robust body materials such as F60, F65, and Inconel, ensuring superior strength and corrosion resistance. Trims are available in F51, 17-4PH stainless steel, or Inconel for reliable sealing performance under high pressure. With a 6-3/8 inch size, bolted bonnet design, and smooth gear operation, they are available with RTJ or BW ends to meet diverse operational requirements.
Valve Description:
183103012 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A
Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
