Key Specifications / Features
Model No. : 1811136
Crafted by an ASTM A105N-certified manufacturer, this 3-inch ball valve boasts a 900 LB rating and conforms to both DN80 and PN150 standards, meeting API 6D and BS 5351 specifications. Constructed from ASTM A350 LF2 material, it features a 3-piece design and operates smoothly with gear operation. Fitted with a durable DEVLON seat, it ensures reliable performance with RTJ flanged ends.
Categories
Trunnion Mounted Ball Valve
Tags:
3 Inch Ball Valve
, Class 900 LB Ball Valve
, API 6D Ball Valve
.

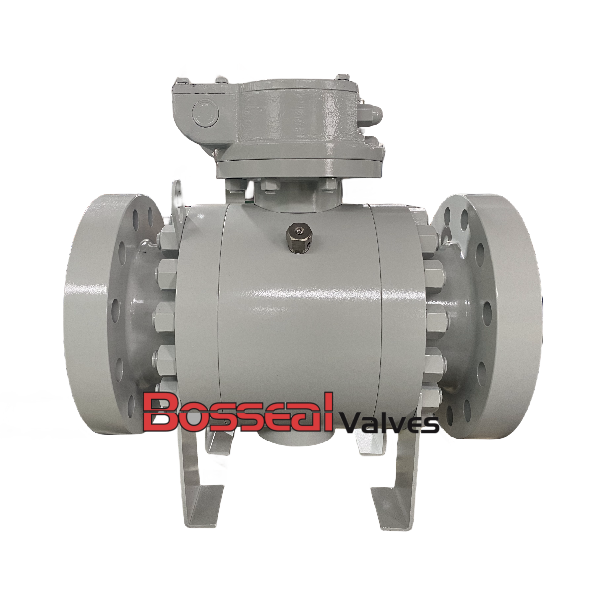

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 3 INCH, 900 LB, RTJ, DEVLON seat, Gear Operation
Valve Description:
1811136 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 3 Inch
Nominal class: 900 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
