Key Specifications / Features
Model No. : 8GLPY25BA105N

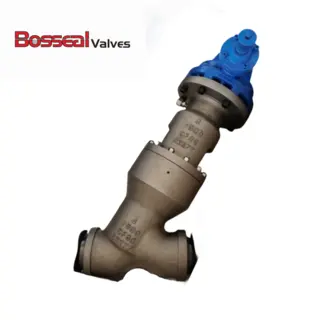

Discover our high-quality forged A105N Y Type Globe Valve, fabricated to perfection in 8-inch size and 2500 LB rating. Conforming to BS 1873 standards, crafted from ASTM A105N material with A182 F6A+STL.6 Trim 5. Featuring a Pressure Seal Bonnet, Plug Disc, BW End, and Gear Operation for optimal performance.
Categories
Globe Valves
Tags:
Y Globe Valve
, ASTM A105N Globe Valve
, BS 1873 Globe Valve
.
Y Pattern Pressure Seal Globe Valve, High Pressure & Temperature, 2500 LB, BS 1873, 8 inch, BW, Forged A105N body Trim 5
Valve Description:
1831008 Globe Valve 8GLPY25BA105N
Design Standard: BS 1873
Structure: Pressure Seal Bonnet, Y type, Plug Disc
Nominal size: 8 Inch
Nominal class: 2500 LB
Bore Type: Standard Bore
End Connection: BW (Butt Weld)
Operation: Gear
Body Material: ASTM A105N
Trim Material: A182 F6A+STL.6
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Plug Disc, OS & Y, Rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, Connival Disc available, for high temperature, power station
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +400℃
Operation: Handwheel, Gear, Motor Actuator
