Key Specifications / Features
Model No. : 16GL1RC958

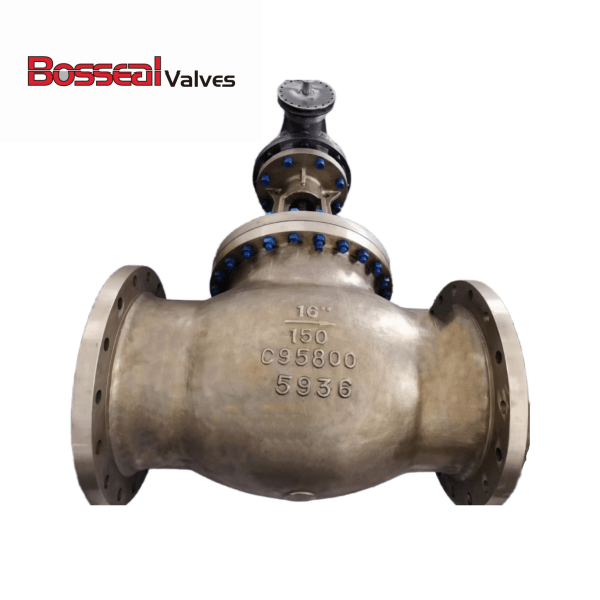

Explore our premium T Type Globe Valve, crafted to perfection with a 16-inch, 150-lb design conforming to BS 1873 standards. Constructed with ASTM B148 C95800 Body & Trim and featuring a Bolted Bonnet, Plug Disc, and Rising Handwheel, it ensures reliable performance in offshore and FPSO applications, especially for seawater environments. RF design guarantees seamless integration. Get superior quality and durability with our T Type Globe Valve.
Categories
Globe Valves
Tags:
T Globe Valve
, ASTM B148 C95800 Globe Valve
, BS 1873 Globe Valve
.
150 LB Cast Steel Globe Valve, Bolted Bonnet, Plug Disc, T Pattern, 16 inch, 150 LB, RF, B148 C95800, BS 1873
Valve Description:
1831009 Globe Valve 16GL1RC958
Design Standard: BS 1873
Structure: Bolted Bonnet, T type, Plug Disc
Nominal size: 16 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Plug Disc, OS & Y, Rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, Connival Disc available, for seawater, offshore, FPSO
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +400℃
Operation: Handwheel, Gear, Motor Actuator
