ASTM A182 F22 Gate Valve, 3 Inch, 1500 LB, ASME B16.34

Key Specifications / Features

Model No. : 3G15BF2205

Looking for a high-temperature and pressure gate valve? Look no further than our factory, which specializes in producing valves made of ASTM A182 F22 material. Our gate valves have a diameter of 3 inches, are DN80 rated, and can handle pressures up to 1500 LB and PN250. We conform to API 602 and ASME B16.34 standards and offer a bolted bonnet design, trim 5, and a BW end with a handwheel for easy operation. Choose our gate valves for reliable performance in even the toughest conditions.

Detail Information

3 Inch 1500 LB A182 F22 Gate Valve for High Temperature & Pressure Service, ASME B16.34, BW End, Trim 5, Handwheel

Valve Description:
1851009 Gate Valve 3G15BF2205
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, Forged Body
Nominal size: 3 Inch
Nominal class: 1500 LB
Bore Type: Standard Bore
End Connection: BW (Butt Weld)
Operation: Handwheel
Body Material: ASTM A182 F22
Trim Material: 1Cr13+STL, No.5
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Solid Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat

Product Range:
Body material: C5, WC6, WC9, F11, F22, C12A, F91
Normal diameter: 2 - 24 Inch (DN50 - DN600)
Pressure range: Class 900 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator

F22 Gate Valve


Name*
E-mail*
Rate*
Comments*

Next: ASTM A182 F304L Swing Check Valve, 1 IN, 150 LB, API 602, RF

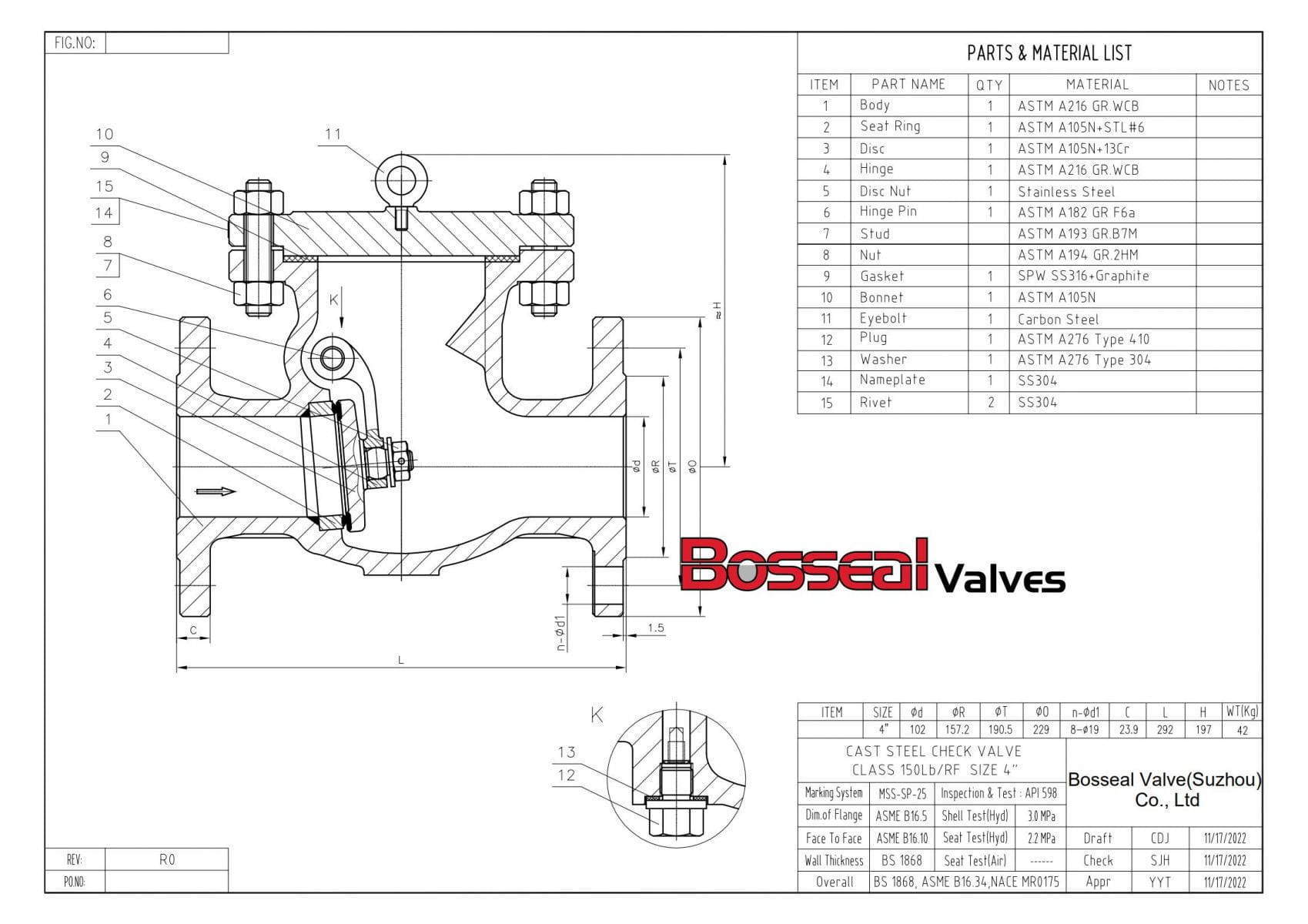

Previous: BS 1868 Swing Check Valve, 150 LB, 4 Inch, DN100, WCB, RF
