ASTM A182 F22 Gate Valve, API 602, 1-1/2 Inch, 1500 LB, BW

Detail Information

BW End Forged Gate Valve, F22, Trim 5, API 602, 1.5 INCH, 1500 LB, Handwheel

Valve Description:
1851004 API 602 Forged Gate Valve 1.5G15BF2205
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1-1/2 Inch
Nominal class: 1500 LB
Bore: Regular Bore
End Connection: BW-Butt Weld End
Operation: Handwheel
Body Material: ASTM A182 F22
Trim Material: 1CR13+STL.6, Trim 5
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: 900-2500 LB
End connection: BW-Butt Weld
Working temperature: -29℃ - +500℃
Operation: Handwheel

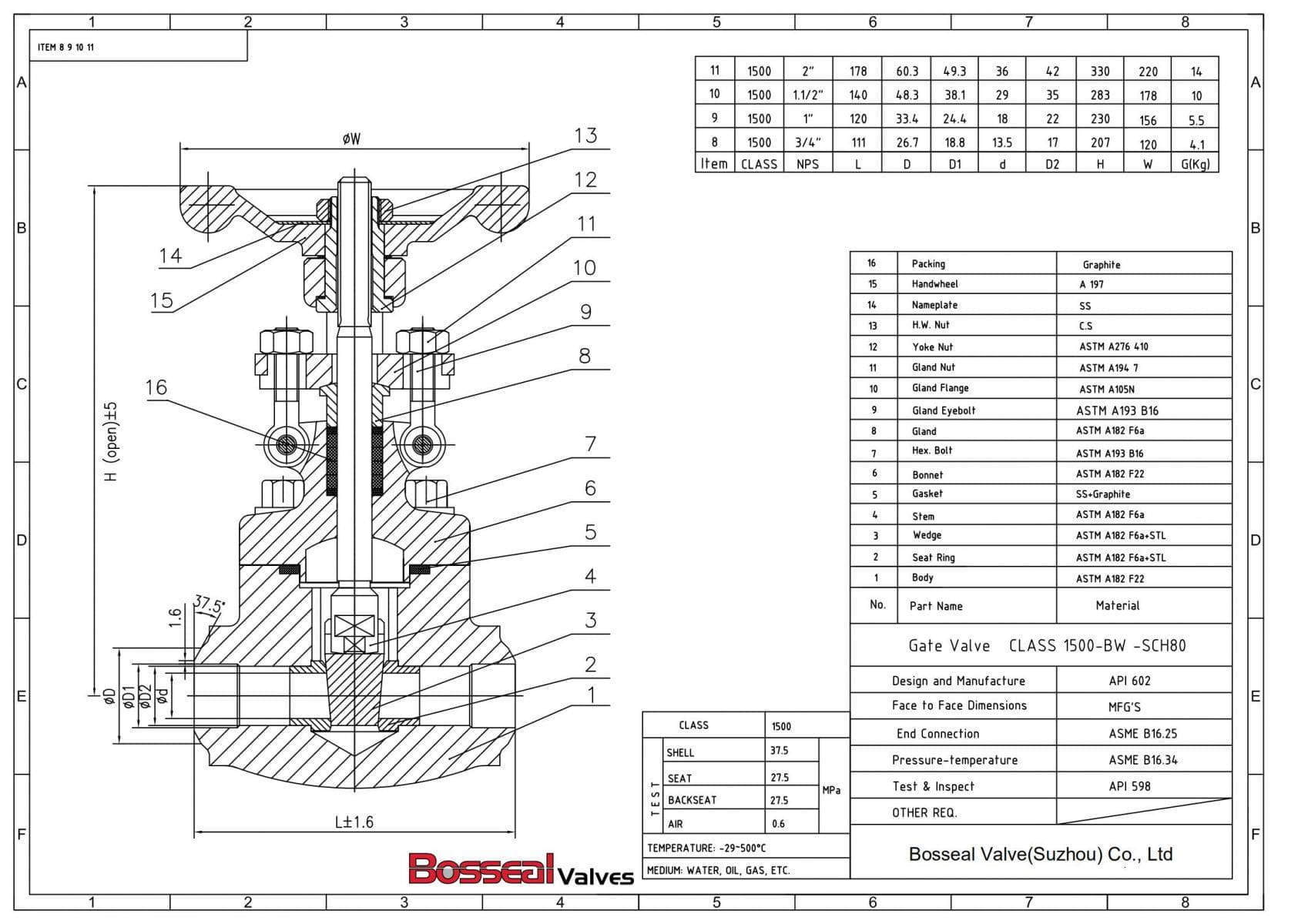

Forged Gate Valve Tech Drawing
