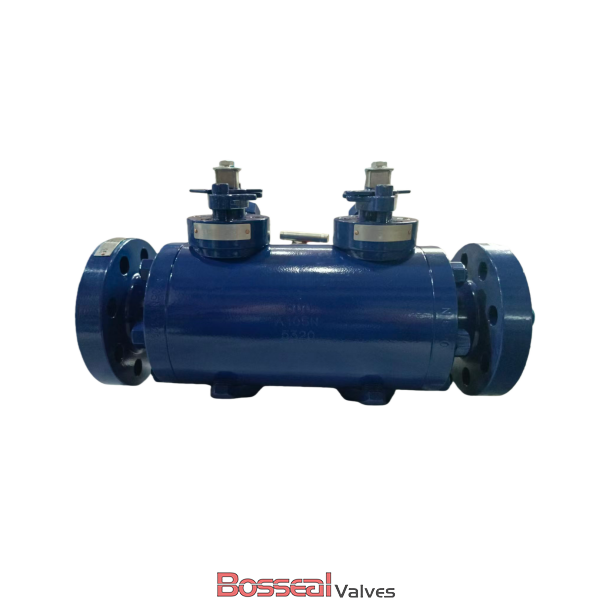

Forged DBB Ball Valves, ASTM A182 F304, 3 Inch, 2500 LB, RTJ

Key Specifications / Features

Model No. : 181302108

This 3-inch (DN80) Trunnion Mounted DBB Ball Valve is engineered for high-pressure and demanding industrial applications, designed to meet API 6D and BS 5351 standards. Featuring a robust ASTM A182 F304 forged steel body, it ensures exceptional strength, corrosion resistance, and long-term durability. Rated for Class 2500 LB (PN420) with RTJ flanged ends, this valve provides secure sealing and reliable performance in critical piping systems. Its trunnion-mounted design allows smooth operation under high pressure, minimizing wear on the ball and stem. As a leading Forged DBB Ball Valves Factory in China, we deliver high-quality valves built for safety, efficiency, and industrial reliability.


Detail Information

Valve Description:
181302108 DBB Ball Valves, Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 3 Inches, DN80, 80 mm
Pressure: Class 2500 LB, PN420
Body Material: ASTM A182 F304, ASTM A105N, ASTM A182 F316, ASTM A350 LF2, Inconel 625, ASTM A182 F51, ASTM A182 F55, ASTM A182 F53
Bore Type: Full Bore or Reduced Bore
Trim Material: ASTM A182 F304, ASTM A182 F6A, ASTM A182 F316, F51, F53, F55, A105+ENP, LF2+ENP
Structure: Full Welded
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
End Connection: RTJ Flanged
Operation: Gear
Seat Insert: RPTFE, DEVLON, NYLON, PEEK

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
