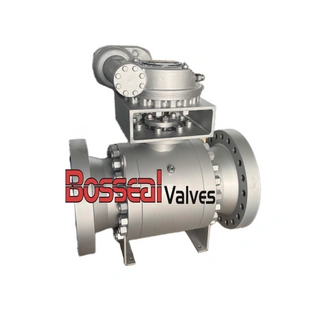

ASTM A182 F316 DBB Ball Valve, Trunnion, 3PC, 6 IN, 1500 LB

Key Specifications / Features

Model No. : 181101015

Direct stem trunnion-supported ball valve crafted from solid ASTM A182 F316 forged stainless steel. This Class 1500 full-port DBB ball valve in NPS6 DN150 features a robust three-piece bolt-up forged body built for high-pressure, corrosive pipeline environments. It adopts a top actuator mounting flange ready for electric or pneumatic actuation. Equipped with body cavity relief and a seat sealant injection port for inline maintenance. Ideal for chemical, oil, and gas pipelines, the stainless steel construction provides outstanding corrosion resistance and consistent tight shut-off under extreme pressure conditions.

Detail Information

Valve type: Trunnion-supported ball valve
Body design: Three-piece forged bolt-up construction
Flow bore: Full port
Seat function: Double block and bleed (DBB)
Design specifications: API 6D, ASME B16.34
Operation: Direct stem with actuator mounting flange
Pressure class: Class 1500 LB
Nominal size: NPS 6 (DN150)
Body material: ASTM A182 F316 stainless steel
End connection: Flanged end
Flange standard: ASME B16.5
Face-to-face dimension: In accordance with API 6D
Body material options: ASTM A105, ASTM A105N, ASTM A182 F304, ASTM A182 F316
Ball material options: ASTM A182 F304, ASTM A182 F316, hardfacing overlay available
Seat material options: PTFE, RPTFE, PEEK, Devlon, metal-to-metal
Stem material: ASTM A182 F316
Fastener package: ASTM A193 B7 studs and ASTM A194 2H heavy nuts
Temperature range: -29°C to +180°C, cryogenic service optional
Applicable media: Natural gas, crude oil, refined products, corrosive petrochemical fluids
Testing protocol: Full hydrostatic and functional test complying with API 6D
Surface finish: Epoxy coating for carbon steel, polished machined surface for stainless steel
Feature: Body cavity relief, seat sealant injection port
