ASTM A182 F316 Forged Gate Valve, API 602, 1IN, CL1500, SW

Key Specifications / Features

Model No. : 1G15SF31612
Get the best A182 F316 gate valve from a reliable provider. This gate valve complies with API 602 and ASME B16.34 standards. It features a 1-inch size, suitable for Class 1500 LB applications. With a DN25 and PN250 rating, it ensures optimal performance. The valve is designed with a bolted bonnet, OS & Y configuration, and a regular bore. It is equipped with SW end connections and operates smoothly with a handwheel. Trust this high-quality gate valve for your industrial needs.

Detail Information

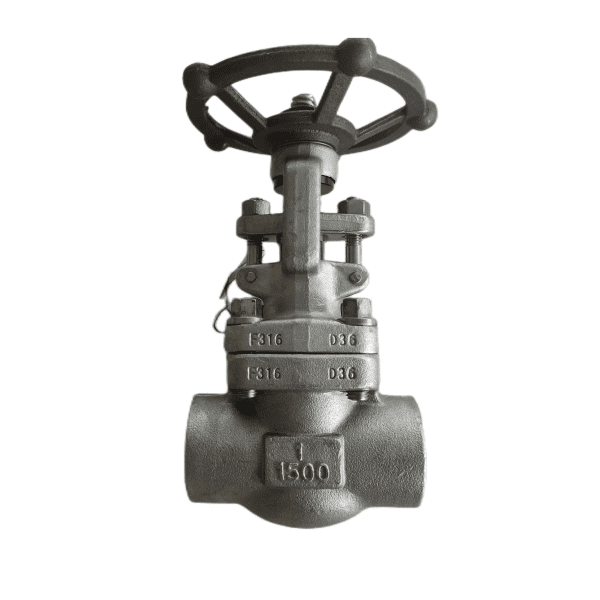

A182 F316 Gate Valve, API 602, 1 INCH, 1500 LB, SW End, Handwheel

Valve Description:
1851021 API 602 Forged Gate Valve 1G15SF31612
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1 Inch
Nominal class: 1500 LB
Bore: Regular Bore
End Connection: SW
Operation: Handwheel
Body Material: ASTM A182 F316
Trim Material: F316+STL.6
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
