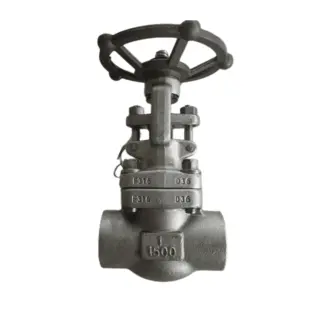

ASTM A105N Forged Gate Valve, API 602, 1 Inch, 1500 LB, NPT

Key Specifications / Features

Model No. : 1G15NA10512-L
Shop for high-quality A105 Body 316 Trim Forged Gate Valve from a reputable manufacturer. This gate valve has a 1-inch size, 1500 LB pressure rating, DN25 (25mm) nominal diameter, and PN250 (250 bar) pressure class. It complies with API 602 and ASME B16.34 standards and features NPT end connections. The valve is equipped with a handwheel that has a locking device for added security. The bolted bonnet design ensures reliable performance. Find the perfect gate valve for your industrial needs.

Detail Information

A105 Body 316 Trim Forged Gate Valve, API 602, 1 INCH, 1500 LB, NPT End, Handwheel with locking device

Valve Description:
1851019 API 602 Forged Gate Valve 1G15NA10512-L
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1 Inch
Nominal class: 1500 LB
Bore: Regular Bore
End Connection: NPT Threaded
Operation: Handwheel with locking device
Body Material: ASTM A105N
Trim Material: SS316+STL.6
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15-DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
