Key Specifications / Features
Model No. : 1G15NA10512
Shop the finest Regular Bore Gate valves from a reputable manufacturer. Crafted with high-quality materials such as ASTM A105N and SS 316 Trim, this valve ensures durability and optimal performance. It features a 1-inch size and is designed for Class 1500 LB applications. With DN25 and PN250 specifications, it meets industry standards. The valve is API 602 and ASME B16.34 compliant, ensuring reliability and safety. The bolted bonnet design, along with OS & Y construction, guarantees secure operation. NPT threaded ends offer easy installation and connectivity. Choose this top-of-the-line gate valve for superior performance in various industrial settings.
Categories
Gate Valves
Tags:
ASTM A105N Gate Valve
, 1 Inch Gate Valve
, Class 1500 LB Gate Valve
.
A105 Body 316 Trim Forged Gate Valve, API 602, 1 INCH, 1500 LB, NPT End, Handwheel
Valve Description:
1851018 API 602 Forged Gate Valve 1G15NA10512
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1 Inch
Nominal class: 1500 LB
Bore: Regular Bore
End Connection: NPT Threaded
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: SS 316 + STL.6
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
Next: ASTM A105N Forged Gate Valve, API 602, 1 Inch, 1500 LB, NPT

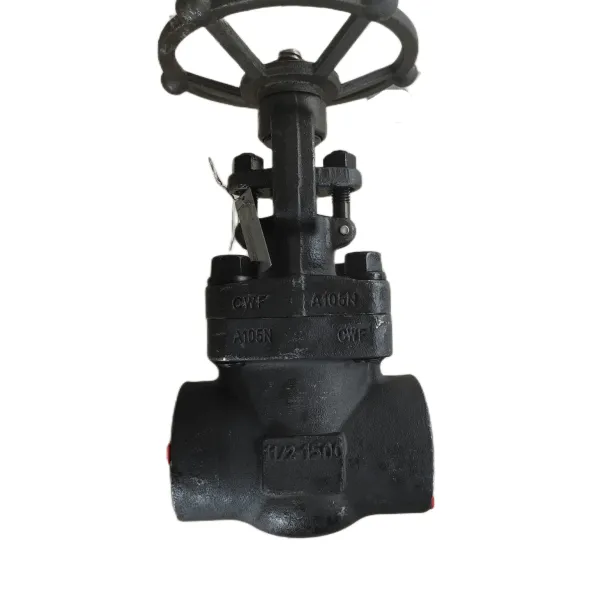

Previous: NPT Threaded Forged Gate Valve, 1-1/2 Inch, 1500 LB, A105N
