Key Specifications / Features
Model No. : 4GPS15JWCB05
We Provide Wedge Gate Valves, ASTM A216 WCB, Pressure Seal Bonnet, 4 Inch, 1500 LB, DN100, PN250, API 600, RTJ, Handwheel Opt, and Standard Bore.

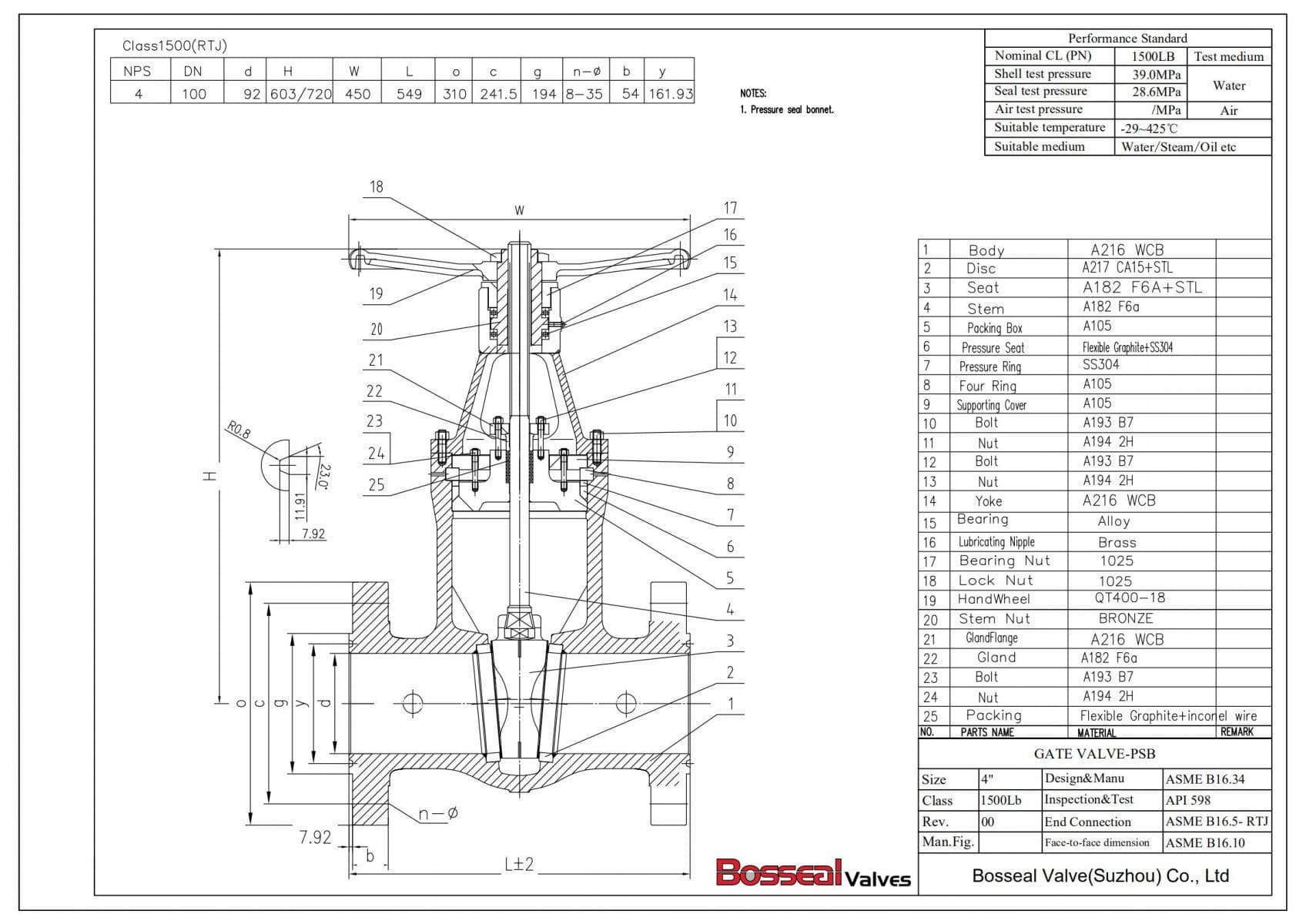

ASTM A216 WCB Wedge Gate Valve, 4 Inch, 1500LB, API 600, RTJ
Detail Information
Product Item: Wedge Gate Valve
Model No.: 4GPS15JWCB05
Design Standard: API 600
Structure: Pressure Seal Bonnet
Nominal size: 4 Inch
Nominal class: 1500 LB
Bore Type: Standard Bore
End Connection: RTJ (Ring Joint Flange)
Operation: Handwheel
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.5
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, Pressure Seal Bonnet
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 900 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +400℃
Operation: Handwheel, Gear, Motor Actuator
Model No.: 4GPS15JWCB05
Design Standard: API 600
Structure: Pressure Seal Bonnet
Nominal size: 4 Inch
Nominal class: 1500 LB
Bore Type: Standard Bore
End Connection: RTJ (Ring Joint Flange)
Operation: Handwheel
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.5
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, Pressure Seal Bonnet
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 900 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +400℃
Operation: Handwheel, Gear, Motor Actuator
Next: Bolted Bonnet Forged Gate Valve, API 600, A105, 3IN, 1500LB
Previous: MONEL 400 ASTM A494 M35-1 Gate Valve, 2 Inch, 300 LB, API600

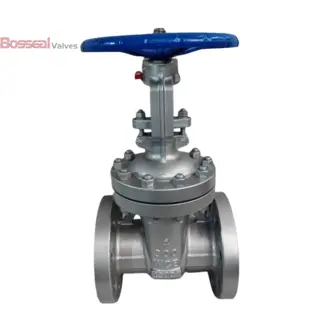

Similar Products
