ASTM A351 CF8 Concentric Butterfly Valve, 10 Inch, 150 LB

Key Specifications / Features

Get top-quality Stainless Steel Concentric Butterfly Valves from our factory, featuring ASTM A351 CF8 construction and a PTFE-lined seat. These valves come in a 10-inch size, DN250, 150 LB and PN10 pressure ratings, with a wafer end design and lever operation. Order yours today for reliable and long-lasting performance.

Request a quote

Categories Concentric Butterfly Valve

Tags: ASTM A351 CF8 Butterfly Valve , 10 Inch Butterfly Valve , Class 150 LB Butterfly Valve .

Detail Information

Stainless Steel Concentric Butterfly Valve, 10 inch, DN250, PN10, Wafer, ASTM A351 CF8 body, CF8 Disc, PTFE lined seat, Lever Operation

Valve Description:
1861005 Concentric Butterfly Valve 10T1RCF8
Design Standard: API 609 Cat A, EN 593
Structure: Concentric, PTFE Lined
Nominal size: 10 Inch, DN250
Nominal class: 150 LB, PN10
End Connection: Wafer
Operation: Lever Operation
Body Material: ASTM A351 CF8
Trim Material: A351 CF8 disc, PTFE seat
Face to face: API 609, EN558
Test and inspection: API 598
Key Features: Super Anti-corrosive PTFE seat, Low torque, Excellent control characteristics, Economical material and installation space

Product Range:
Body material: Iron, WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear

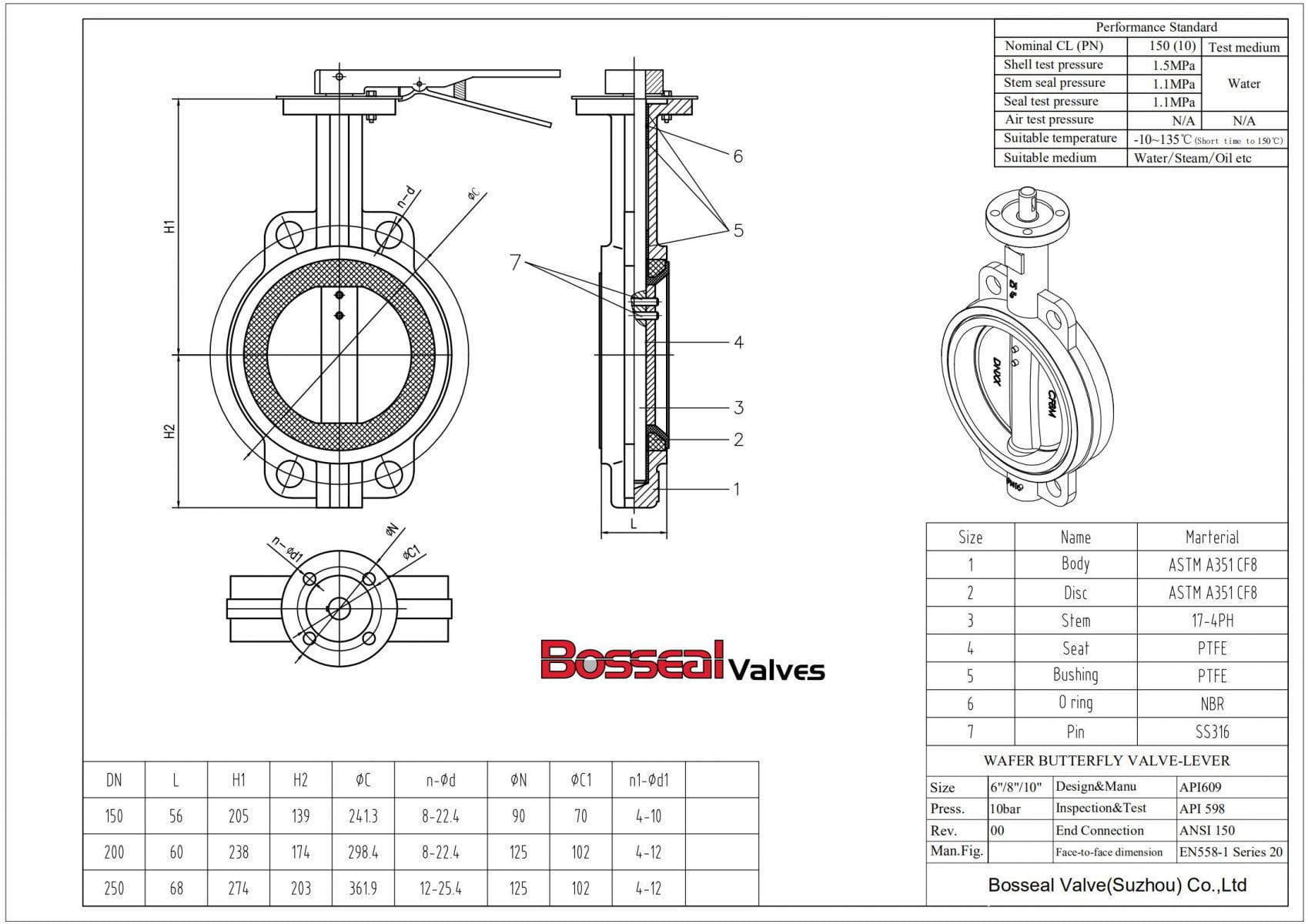

Stainless Steel Butterfly Valve Tech Drawing
