Key Specifications / Features
Model No. : 16G1RCF820
Looking for an ASTM A351 CF8 gate valve manufacturer? We offer a range of options including API 600 and API 603 standards, in 16 inches, 150 LB, DN400, and PN20 specifications. With SS 304 trim, OS & Y design, bolted bonnet, flexible wedge, and gear operation, our RF gate valves ensure reliability and durability for your industrial needs.
Categories
Gate Valves
Tags:
API 600 Gate Valve
, API 603 Gate Valve
, 16 Inch Gate Valve
.

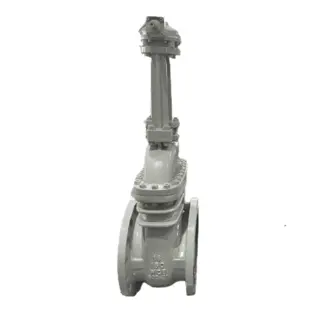

API 600 Gate Valve, 16 Inch 150 LB, RF, OS & Y, A351 CF8 Body, SS 304 Trim, Gear Operation
Valve Description:
1821030 Gate Valve 16G1RCF820
Design Standard: API 600, API 603
Structure: Bolted Bonnet
Nominal size: 16 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Gear
Body Material: ASTM A351 CF8
Trim Material: SS 304+STL, No.20
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
