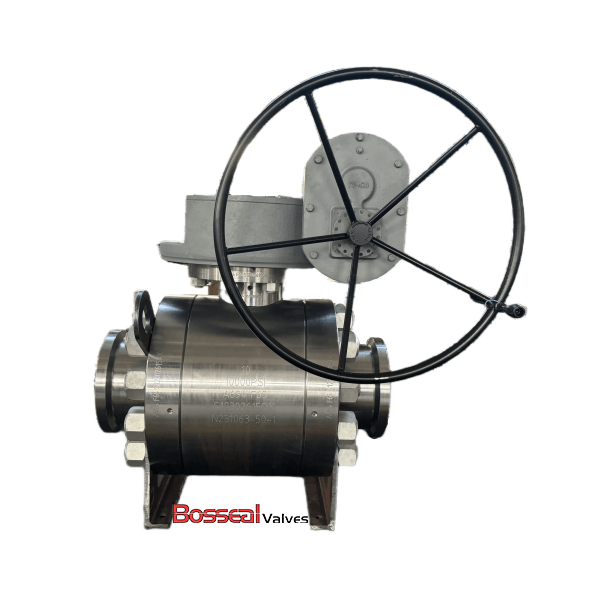

ASTM A694 F65 Ball Valve, API 6A, 15000 PSI, Metal Seated, RTJ

Name: ASTM A694 F65 Ball Valve, API 6A, 15000 PSI, Metal Seated, RTJ
SKU: bv-181104105
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : BV-181104105

We are a trusted metal seated ball valve provider in China, offering precision-engineered solutions for critical oil and gas applications. This soft seated ball valve is built with an ASTM A694 F60/F65 body, designed to meet API 6A standards for superior reliability. Sized at 6-3/8 inches and rated to withstand pressures up to 15,000 PSI, it ensures dependable performance in demanding conditions. Available with BW or RTJ ends, it delivers secure and leak-proof connections. The trim, crafted from 4140/F51/17-4PH, enhances durability and corrosion resistance, while gear operation provides smooth and accurate control.

Request a quote

Tags:

ASTM A694 F65 Ball Valve

API 6A Ball Valve

6-3/8 Inch Ball Valve

Detail Information

Valve Description:
181104105 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:
Bolted body with 2-piece and 3-piece construction
Double block and bleed capability
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Anti-blowout stem design for enhanced safety
Integrated anti-static devices
Ensures bubble-tight shutoff for reliable sealing
