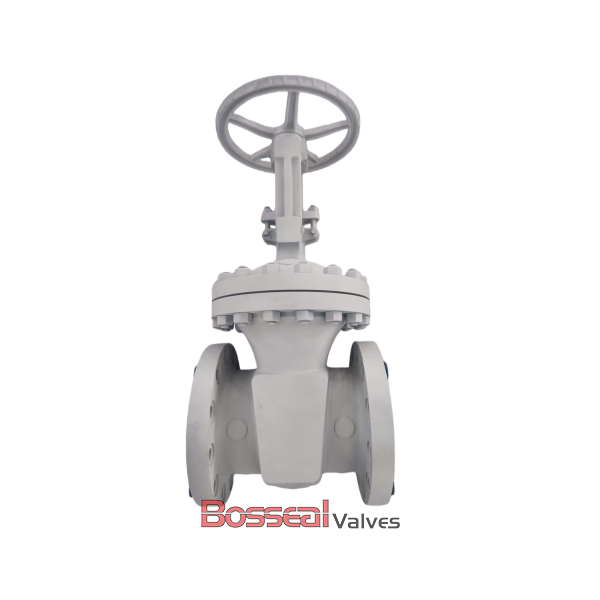

ASTM A995 4A Wedge Gate Valves, API 600, 14 IN, 150 LB, RF

Key Specifications / Features

Model No. : 1821167

This Cast Steel Gate Valve is designed in accordance with API 600 standards, ensuring reliable performance in demanding industrial applications. Manufactured with a robust ASTM A995 4A duplex stainless steel body, it offers excellent strength, corrosion resistance, and durability. Featuring a 14-inch (DN350) size, Class 150 LB rating, RF flanged ends, and a bolted bonnet design, this wedge gate valve provides secure sealing and smooth operation in high-pressure pipeline systems. Ideal for oil, gas, petrochemical, and power industries, it ensures long service life and stable performance. As a leading wedge gate valve supplier in China, we deliver high-quality valves, customized solutions, and professional support for global clients.


Detail Information

Valve Description:
1821167 Cast Steel Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Sizes: 14 Inch, DN350, 350 mm
Pressure Rating: Class 150 LB, PN20
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Body Material:  ASTM A995 4A, ASTM A351 CF8, ASTM A351 CF3, ASTM A352 LCB, ASTM A216 WCB, ASTM A216 WCC, ASTM A352 LCC, ASTM A351 CF3M, ASTM A351 CF8M, ASTM A995 5A, 6A, ASTM B148 C95800, ASTM A217 C5, ASTM A217 WC6, WC9, C12A
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Al-bronze
Normal diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
