Key Specifications / Features

Model No. : CKV-187306008

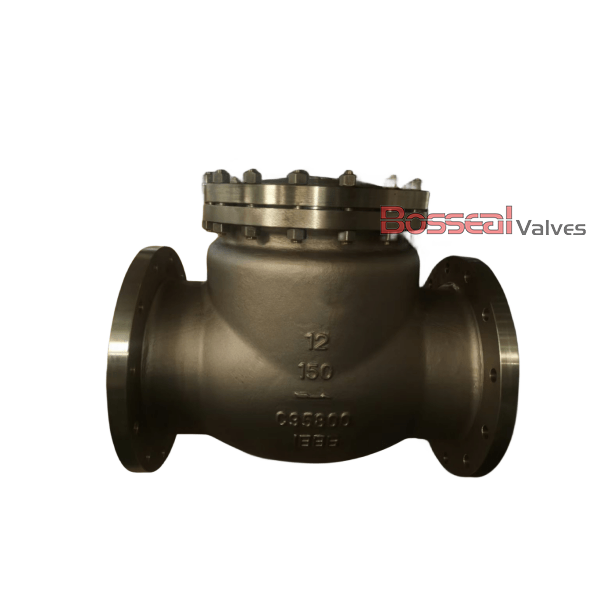

As a leading swing check valve supplier in China, we offer high-quality valves designed to meet API 6D and BS 1868 standards. Our 12-inch swing check valves feature durable bodies and trims made from premium aluminum bronze ASTM B148 C95800, providing excellent resistance to corrosion and wear. Rated for Class 150 LB, these valves are built with a bolted bonnet for secure sealing and easy maintenance. Additionally, an operation lever design is available to enhance control and convenience. Ideal for marine, offshore, and industrial applications, our swing check valves deliver reliable backflow prevention and long-lasting performance in demanding environments.



Detail Information

Valve Description:
187306008 Aluminum Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594
Structure: Bolted Bonnet
Nominal Size: 12 Inch
Nominal Class: 150 LB
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
End Connection: FF or RF Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: Bolted Bonnet, Full Opening design available, Operation Lever design Available, Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)
