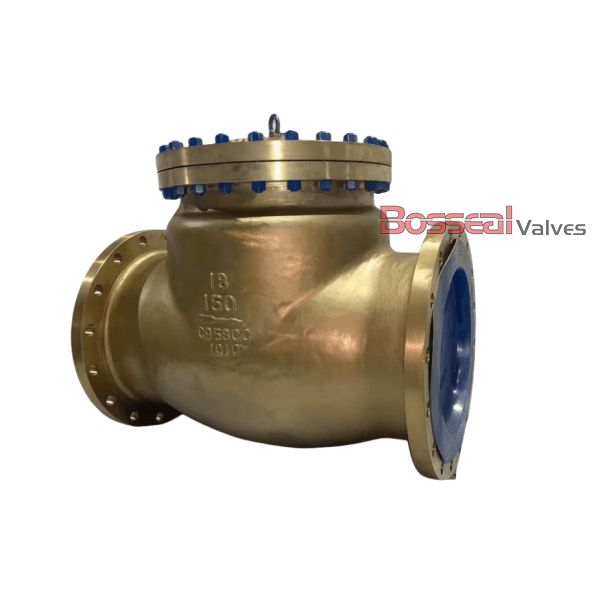

API 594 Swing Check Valves, Al-bronze C95800, 10 Inch, CL150

Name: API 594 Swing Check Valves, Al-bronze C95800, 10 Inch, CL150
SKU: ckv-187306007
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CKV-187306007

As a leading swing check valve factory in China, we provide a 10-inch (DN250) swing check valve designed to API 594 standards. It features a robust aluminum bronze body and trim crafted from ASTM B148 C95800, ensuring superior corrosion resistance. Rated Class 150 LB, the valve is available with either flat face (FF) or raised face (RF) flanged ends to fit diverse piping systems. Built for dependable backflow prevention and durability, this valve is well-suited for marine, offshore, and industrial applications in challenging and corrosive conditions.

Request a quote

Tags:

API 594 Check Valve

Al-bronze Check Valve

ASTM B148 C95800 Check Valve

Detail Information

Valve Description:
187306007 Aluminum Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594
Structure: Bolted Bonnet
Nominal Size: 10 Inch
Nominal Class: 150 LB
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
End Connection: FF or RF Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: Bolted bonnet for secure sealing, optional full opening design for maximum flow, operation lever available for manual control, and corrosion-resistant aluminum bronze construction ideal for seawater service.

Product Range:
Body Material: Al-bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)
