Key Specifications / Features
Model No. : 2GS16RG50
Welcome to our Ductile Iron Resilient Gate Valve Factory. We specialize in producing high-quality valves meeting international standards such as BS 5163, EN 558/3, and EN 1074. Our valves feature resilient seats, ensuring reliable performance. Our product range includes valves with specifications like DN50 to DN400, PN16 to Class 150 LB, and 2 to 16 inches. Explore our collection for superior quality and precision engineering in gate valves.
Categories
Gate Valves
Tags:
BS 5163 Gate Valve
, EN 558 Gate Valve
, EN 1074 Gate Valve
.

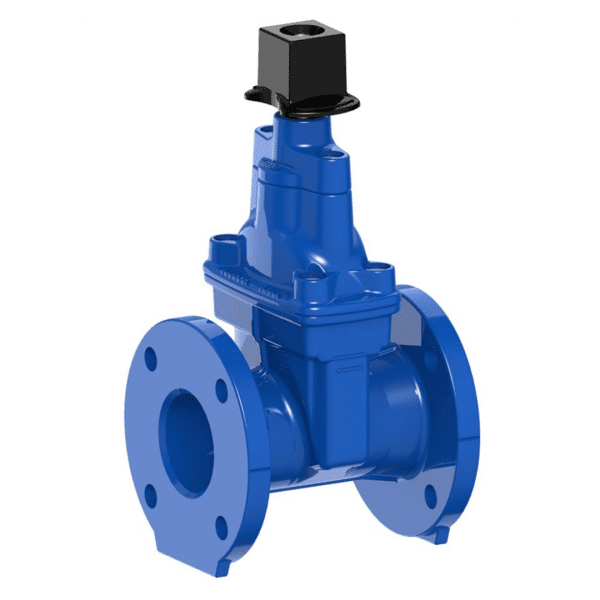

Flanged End Resilient Seated Gate Valve, DN50, PN16, ductile iron Body, NBR/EPDM seat, Handwheel
Valve Description:
1871006 Resilient Gate Valve 2GS16RG50
Design Standard: BS 5163, EN 558/3, EN 1074
Structure: Resilient Seat
Nominal size: DN50
Nominal class: PN16
End Connection: RF Flanged End, EN 1092, PN16
Operation: /
Body Material: GGG50
Trim Material: GGG5+NBR/EPDM
Face to face: EN 558 Table 2 Basic Series 3
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, Resilient seated gate valve for water and waste water to max. 70° and max 10% solid matter, WRAS approved materials available
Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 2 - 16 Inch (DN50 - DN400)
Pressure range: PN10, PN16
End connection: Flanged
Working temperature: up to 70℃
Suitable Service: water, sewage, or other neutral liquids
