Key Specifications / Features
Model No. : 4GS25RG50
Explore our range of premium Flanged Resilient Seated Gate Valves crafted to the highest standards. Conforming to BS 5163 and EN 558/3, our valves are designed for excellence. With specifications including DN150 size, PN25 pressure rating, and 6-inch dimensions, they also meet Class 300 LB standards. Constructed from durable Ductile Iron GGG50, these valves boast NBR/EPDM seats for optimal performance. Experience smooth operation with the ergonomic Handwheel design. Upgrade your system with precision-engineered gate valves.
Categories
Gate Valves
Tags:
GGG50 Gate Valve
, DN150 Gate Valve
, PN25 Gate Valve
.

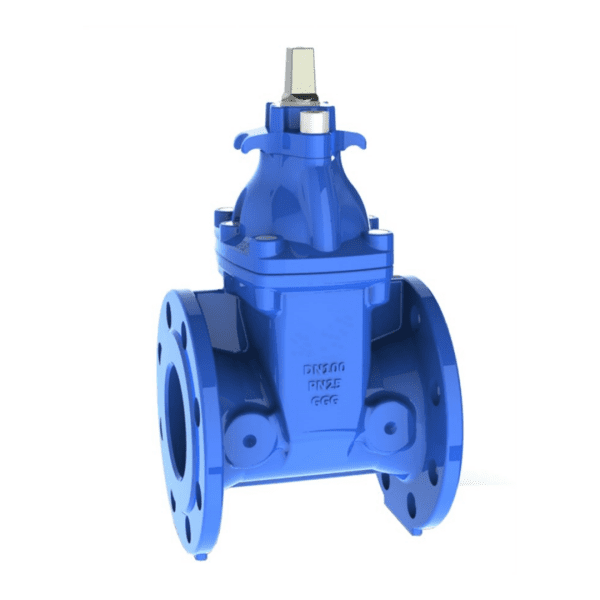

Flanged End Resilient Seated Gate Valve, PN25, ductile iron Body, NBR/EPDM seat, Handwheel
Valve Description:
1871005 Resilient Gate Valve 4GS25RG50
Design Standard: BS 5163, EN 558/3
Structure: Resilient Seat
Nominal size: DN150
Nominal class: PN25
End Connection: Flanged End, EN 1092, PN25
Operation: /
Body Material: GGG50
Trim Material: GGG5+NBR/EPDM
Face to face: EN 558 Table 2 Basic Series 3
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, Resilient seated gate valve for water and waste water to max. 70° and max 10% solid matter, WRAS-approved materials available
Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 2 - 16 Inch (DN50 - DN400)
Pressure range: PN10, PN16
End connection: Flanged
Working temperature: up to 70℃
Suitable Service: water, sewage, or other neutral liquids
