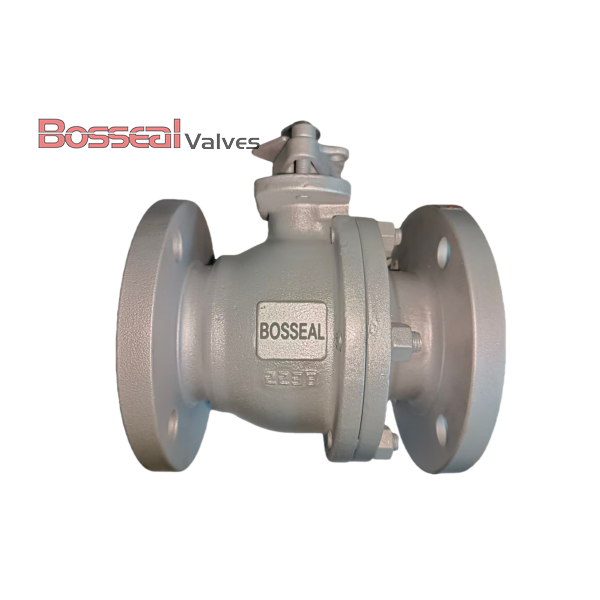

Cast Floating Ball Valves, API 608, 6 IN, CL300, 2pcs, Custom

Key Specifications / Features

Model No. : 181203016

Our 6-inch Class 300 LB floating ball valve is engineered with a robust 2-piece body and bolted bonnet design, fully compliant with API 608 requirements. The ASTM A216 WCB carbon steel body ensures excellent strength and durability, while the A105 trim with ENP coating provides superior wear and corrosion resistance. Available with RF or RTJ flanged ends, this valve delivers secure, leak-tight connections for high-pressure pipeline systems. Designed for reliable shut-off and smooth operation, it is suitable for oil, gas, chemical, and industrial applications. As a leading cast floating ball valves supplier from China, we provide high-quality, performance-driven flow control solutions.


Detail Information

Valve Description:
181203016 Floating Ball Valve
Design Standard: API 608, ISO 17292, API 6D
Structure: 2pcs body, Side Entry, Bolted Bonnet, Soft Seat
Sizes: 6 Inches, DN150, 150 mm
Pressure: Class 300 LB, PN50
Bore Type: Full Bore or Reduced Bore
End Connection: RF, RTJ
Operation: Lever
Body Material: ASTM A105N or A350 LF2 or A182 F316, ASTM A216 WCB, ASTM A216 WCC, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A995 4A, ASTM A995 5A, ASTM A995 6A, ASTM B148 C95800
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to face: Manufacturer Standard
Test and inspection: API 598, API 6D
Key Features: Anti-static, Fire Safe, Anti-Blowout Stem

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 Inch - 6 Inch (DN15 – DN150)
Pressure range: Class 150 LB - 300 LB
End connection: Flanged
Working temperature: -26°C - +210°C
Operation: Manual(lever), Pneumatic Actuator
