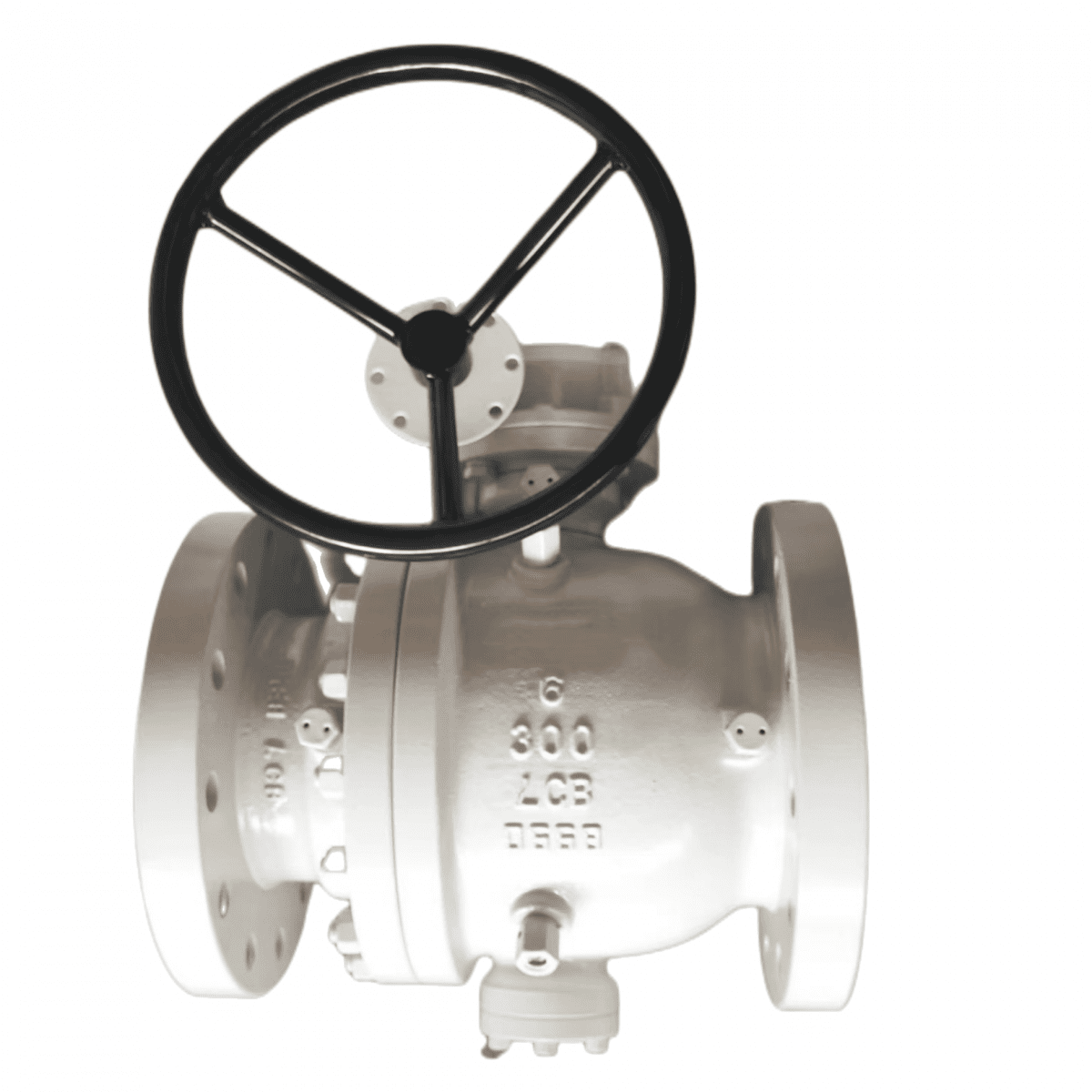

Low Temperature Trunnion Mounted Ball Valve, LCB, 6IN, CL300

Key Specifications / Features
Model No. : 6BS3RLCB

Introducing our Low-Temperature Carbon Steel Trunnion Mounted Ball Valve, designed specifically for the low-temperature application and conforming to API 6D standards. This valve has a size of 6 inches, a pressure rating of 300 LB, and features RF and LCB Body. Its 17-4PH stem, F316 ball & seat, and DEVLON seat ensure reliable and durable performance. The valve is operated via Gear Operation and is compliant with Nace MR0175 requirements. Order now to experience smooth and precise flow control!

Categories Trunnion Mounted Ball Valve

Tags: Trunnion Ball Valve , ASTM A352 LCB Ball Valve , 6 Inch Ball Valve .

Detail Information
Low-Temperature Carbon Steel Trunnion Mounted Ball Valve for Low Temperature, API 6D, 6 Inch, 300 LB, RF, LCB Body, 17-4PH stem, F316 ball & seat, DEVLON seat, Gear Operation, Nace MR0175

Valve Description:
1811025 Trunnion Mounted Ball Valve 6BS3RLCB
Design Standard: API 6D
Structure: Two pieces casting body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 6 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear Box
Body Material: ASTM A352 LCB
Trim Material: ASTM A182 F316, DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 900 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

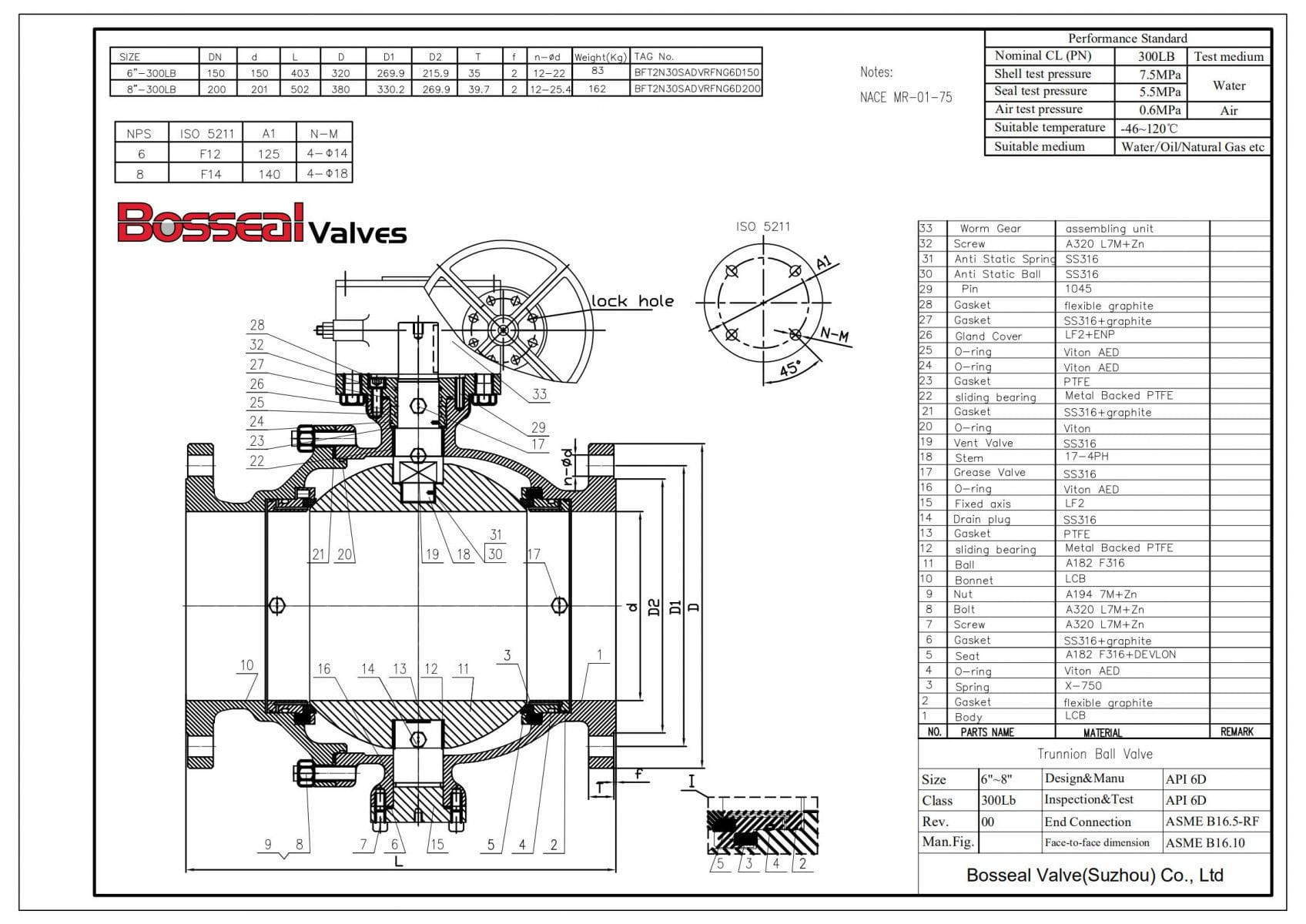

Carbon Steel Trunnion Mounted Ball Valve Tech Drawing
