Cast Steel Floating Ball Valve, API 608, WCB, 6 Inch, 300 LB

Key Specifications / Features
Model No. : 6B3RWCB

This DN150 floating ball valve is built to API 608 standards and features an ISO 5211 mounting pad for easy installation. The valve has a 6 inch size, 300 LB rating, and RF end connections with a WCB body and 316 trim for maximum durability and corrosion resistance. The lever operation ensures easy and reliable control of flow in your system. Choose this high-quality ball valve for your industrial needs.

Categories Floating Ball Valve

Tags: Cast Steel Ball Valve , Floating Ball Valve , API 608 Ball Valve .

Detail Information

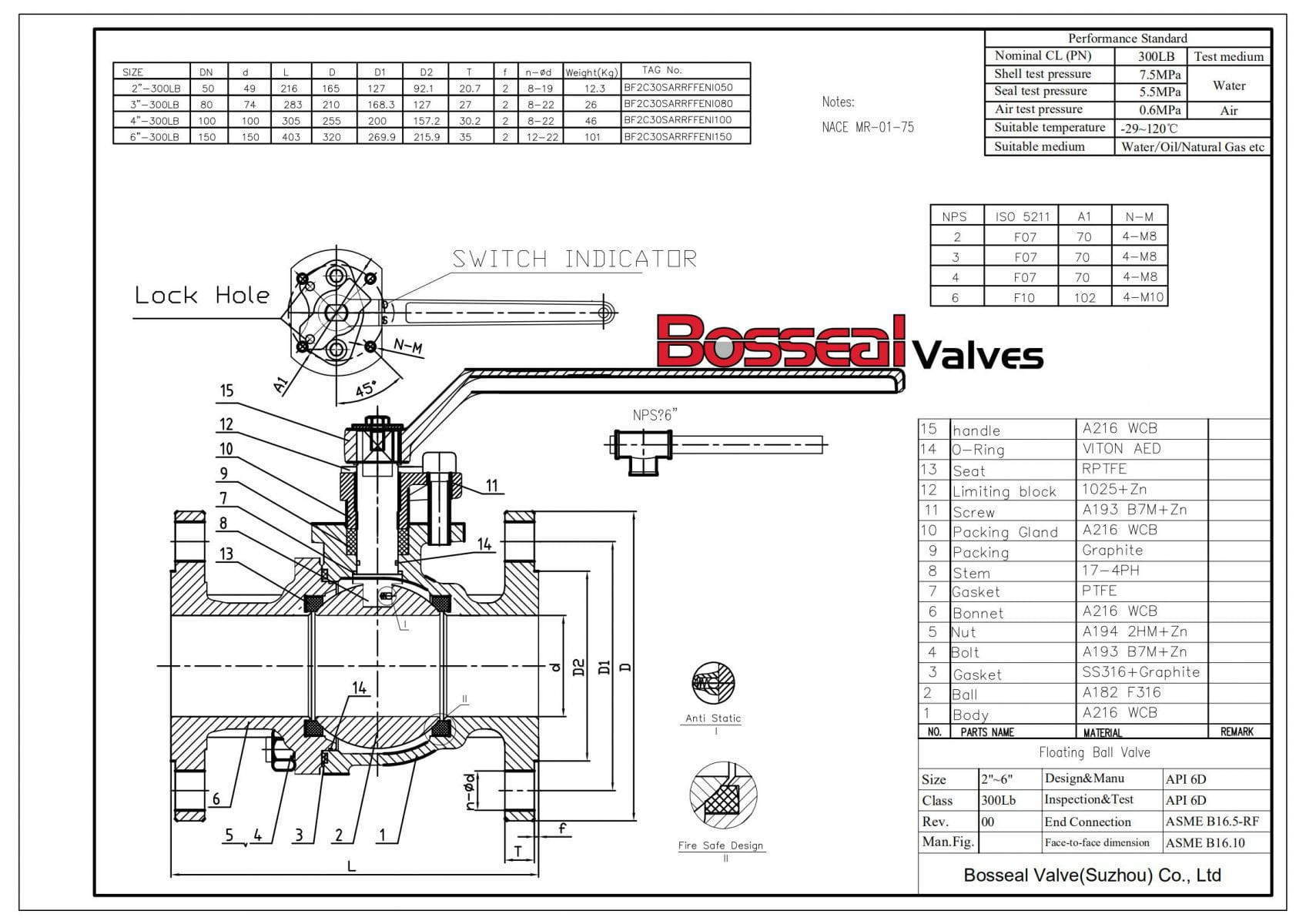

DN150 Floating Ball Valve, API 608, ISO 5211 Mounting Pad, Casting Body, 6 Inch, 300 LB, RF, WCB Body, 316 Trim, Lever Operation

Valve Description:
1812006 Floating Ball Valve 6B3RWCB
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 6 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Lockable
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device, ISO 5211 mounting pad

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator

DN150 Floating Ball Valve
