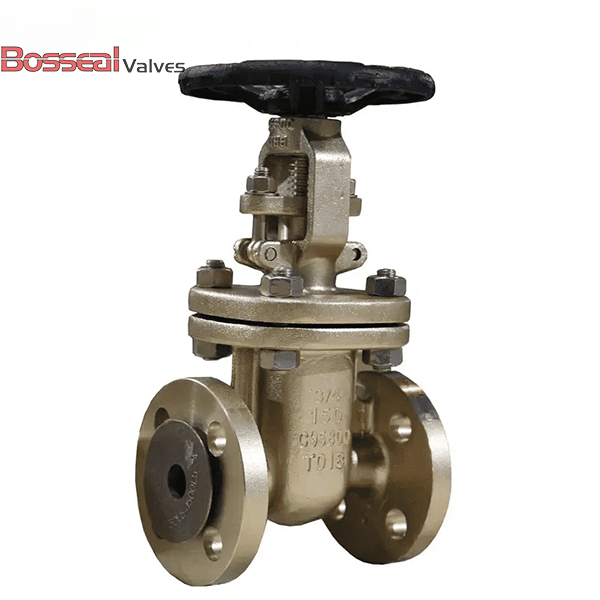

Flexible Wedge Gate Valves, API 600, Al-bronze C95800, 8 Inch

Name: Flexible Wedge Gate Valves, API 600, Al-bronze C95800, 8 Inch
SKU: gtv-187304027
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : GTV-187304027

Built to API 600 standards, this 8-inch (DN200) flexible wedge gate valve features a pressure seal bonnet and a rugged aluminum bronze body made from ASTM B148 C95800. With a Class 300 LB pressure rating, it offers flat face (FF) or raised face (RF) flanged ends for flexible installation. The flexible wedge design provides dependable sealing and smooth operation, even under varying pressure conditions. Engineered for harsh industrial environments, it ensures superior corrosion resistance and long service life. Manufactured by a reliable aluminum bronze gate valve provider in China.

Request a quote

Tags:

Flexible Wedge Gate Valve

API 600 Gate Valve

Al-bronze Gate Valve

Detail Information

Valve Description:
187304027 Aluminum Bronze Gate Valve, Flexible Wedge.
Design Standard: API 600
Body Material: ASTM B148 C95800
Nominal Size: 8 Inch, DN200
Nominal Class: Class 300 LB
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Structure: Bolted Bonnet/Pressure Seal Bonnet
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor

Next: 10 Inch Gate Valves, Aluminum Bronze, C95800, 300 LB, BB, FF

Previous: 6 Inch Al-bronze Gate Valve, API 600, B148 C95800, CL300 LB

Similar Products

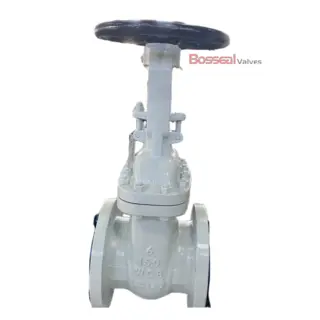

ASTM B148 C95800 Gate Valve, 24 IN, CL 600 LB, OS&Y, PSB

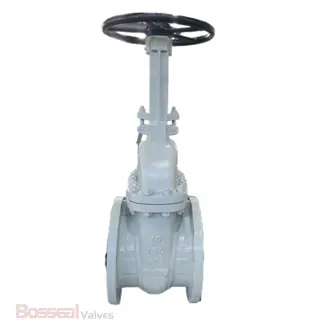

API 600 Wedge Gate Valve, 3 IN, 2500 LB, ASTM B148 C95800

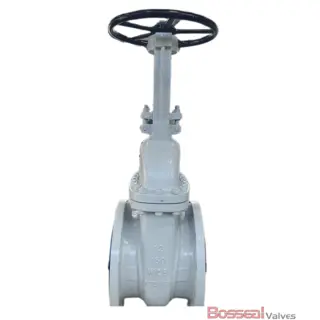

ASTM B148 C95800 Gate Valve, BB, OS&Y, 10 IN, CL900, API 600
