Key Specifications / Features
As a trusted China floating ball valve supplier, we provide high-quality valves engineered to API 6A standards for superior performance and reliability. Each valve features a robust AISI 4130 or ASTM A694 F65 body designed to handle demanding pressure conditions up to 3000 PSI. The AISI 4140 or F51 trim ensures excellent mechanical strength and corrosion resistance. With a 1PC body construction and options for soft or metal seats, these 6-5/8 inch valves deliver tight sealing and smooth operation. Available with RTJ or butt-weld ends, they are ideal for oil, gas, and high-pressure process applications.
Valve Description:

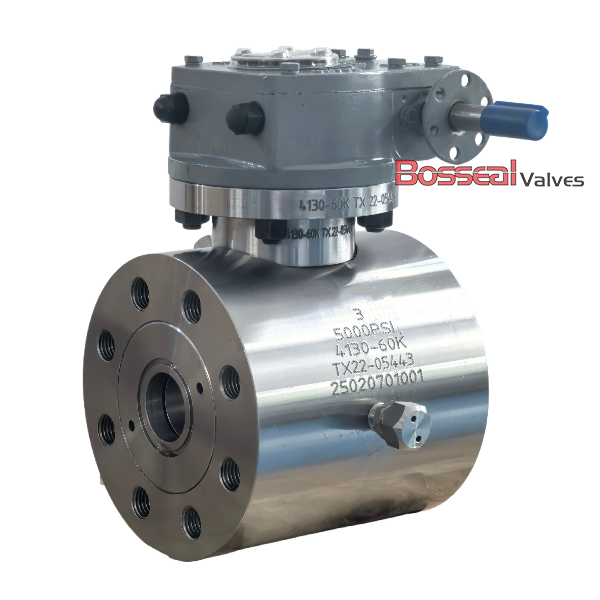

181105034 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
