Key Specifications / Features
As a leading compact ball valve provider from China, we specialize in high-performance valves engineered for demanding industrial applications. Our valves feature durable alloy steel bodies in F60, F65, or AISI 4130 and are designed to meet API 6D and API 6A standards. With sizes up to 6-1/8 inches and pressure ratings of 2500 PSI, these valves incorporate precision 4140, F51, or 17-4PH trims for long-lasting reliability. Available with RTJ or butt-weld (BW) ends, our compact ball valves provide superior sealing, excellent flow control, and robust performance for oil, gas, and industrial piping systems.
Valve Description:

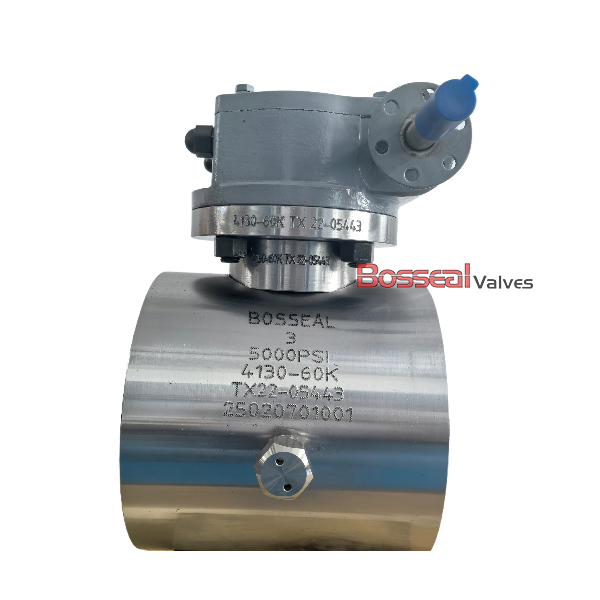

181105074 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
