Chemical and Mechanical Requirements for Carbon Steel - ASTM A216 WCB

Jan 21, 2024

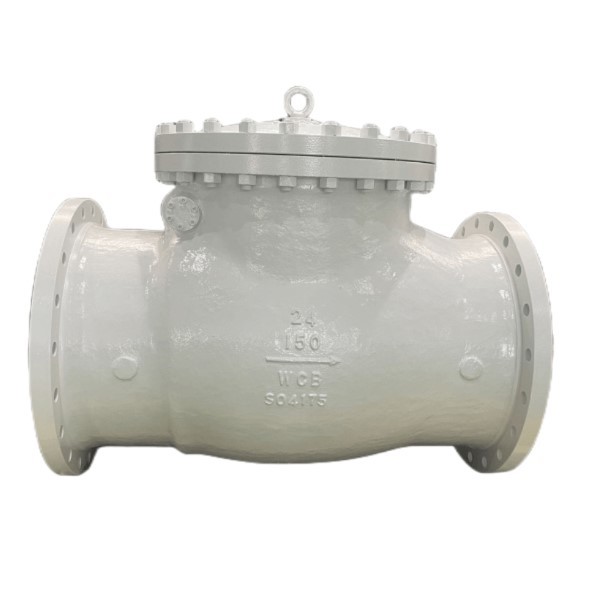

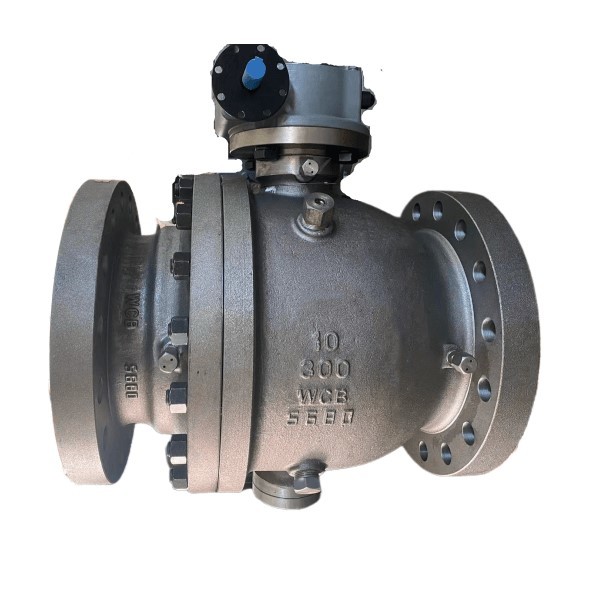

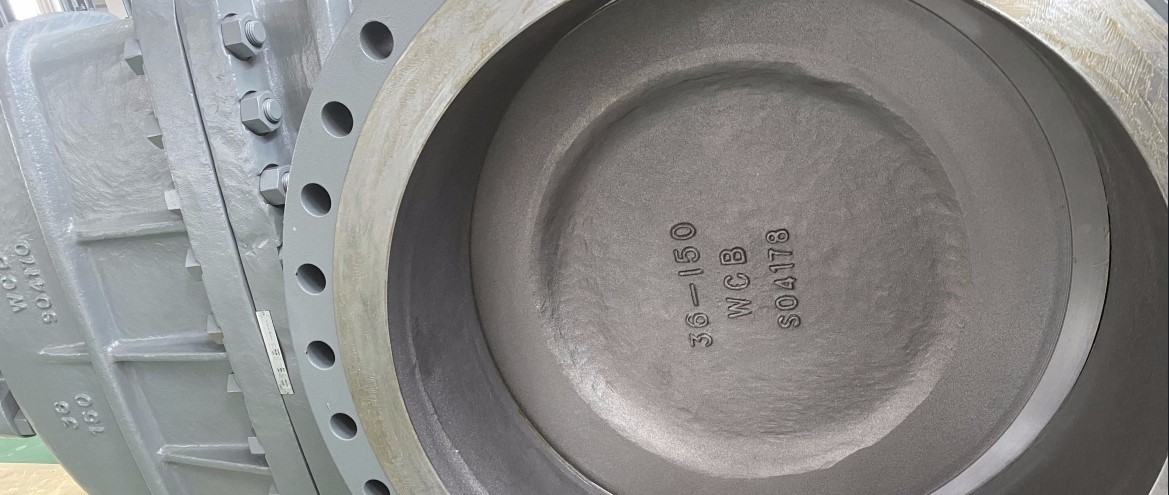

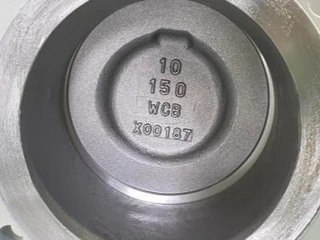

For carbon steel valves, ASTM A216 WCB is mostly commonly used for the casting of body & bonnet and other base materials of pressure-containing parts.

Chemical Requirements

Element %
Material Grade	C	Mn	P	SB	Si	NiC	CrC	MoC	CuC	VC
WCB D J03002	0.30	1.00	0.035	0.035	0.60	0.50	0.50	0.20	0.30	0.03

1. All values are maximums.

2. For lower maximum sulfur content, see Supplementary Requirement S52

3. Specified Residual Elements- Except when Supplementary Requirement S50 is specified, the total content of these elements is 1.00% maximum.

4. For each reduction of 0.01% below the specified maximum carbon content, an increase of 0.04% of manganese above the specified maximum will be permitted up to a maximum of 1.10% for WCA.1.28% for WCB and 1.40% for WCC.

Tensile Requirements

Material Grade	Tensile Strength, ksi (MPa)	Yield Strength, ksi (MPa)	Elongation in 2 in.(50mm), %	Reduction of Area, %
WCB	70-95 (485-655)	36 (250)	22	35

The equivalent material in forged type is ASTM A105N (refer to the standard accordingly).

Bosseal Valve is an experienced valve manufacturer of high-quality WCB casting valves, for any technical or commercial support please consider our teams at [email protected]
