Key Specifications / Features
Model No. : 12S15BWC605
Discover our premium Pressure Seal Bonnet Check Valve, featuring Swing Type design, 12 Inch size, 1500 LB rating, ASTM A217 WC6 Body with 1Cr13+STL Trim 5, compliant with BS 1868 and API 594 standards. Equipped with BW Ends and Renewable Seat for superior performance.
Categories
Swing Check Valve
Tags:
BS 1868 Check Valve
, API 594 Check Valve
, 12 Inch Check Valve
.
Pressure Seal Swing Check Valve, 12 inch, 1500 LB, BW, WC6 body, Trim 5
Valve Description:
1841012 Swing Check Valve 12S15BWC605
Design Standard: BS 1868, API 594
Structure: Pressure Bonnet, Swing type
Nominal size: 12 Inch
Nominal class: 1500 LB
Bore Type: Standard Bore
End Connection: BW
Operation: /
Body Material: ASTM A217 WC6
Trim Material: 1Cr13+STL, No.5
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Swing Disc, Renewable Seat
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 32 Inch (DN50 - DN800)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +400℃
Operation: /

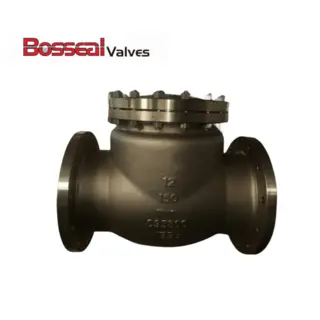

Next: ASTM B148 C95800 Swing Check Valve, 12 IN, 150 LB, BS 1868, API 594

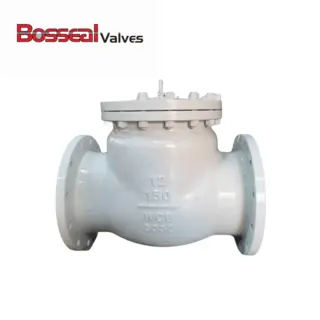

Previous: Bolted Bonnet Swing Check Valve, 12 IN, CL 150, WCB, API 594
