Key Specifications / Features
Model No. : 1811134
Manufactured by a leading RTJ Trunnion Ball Valve Maker, this 2-inch valve is designed for a 900-lb pressure rating, conforming to DN50 and PN150 standards. Compliant with API 6D and BS 5351 specifications, it features construction from high-quality materials including ASTM A105N and ASTM A350 LF2. This 3-piece valve is equipped with an RF Flanged End and DEVLON Seat for optimal performance in diverse industrial applications.
Categories
Trunnion Mounted Ball Valve
Tags:
2 Inch Ball Valve
, Class 900 LB Ball Valve
, API 6D Ball Valve
.

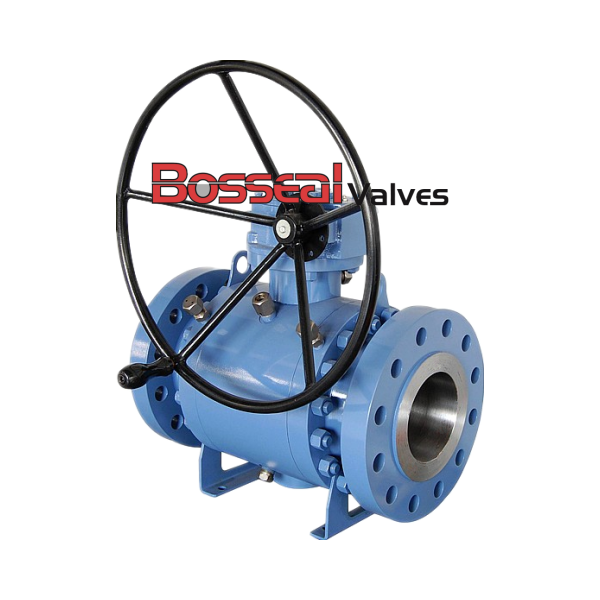

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 2 INCH, 900 LB, RTJ, DEVLON seat, Gear Operation
Valve Description:
1811134 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 2 Inch
Nominal class: 900 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
