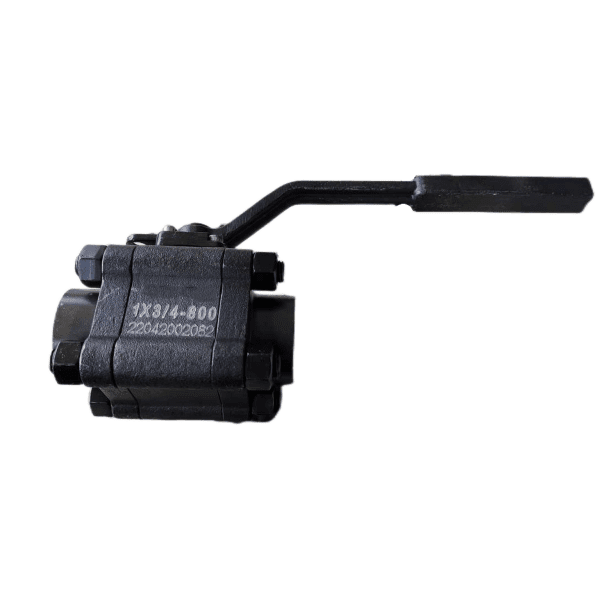

Three Pieces Floating Ball Valve, 1 Inch, 800 LB, ASTM A105

Key Specifications / Features
Model No. : 1BB8SNA105N

Introducing our high-quality Floating Ball Valve, designed for optimal performance. This valve features a sturdy A105 body with SS 316 Trim, ensuring durability and corrosion resistance. With a 1-inch size and 800 LB pressure rating, it is suitable for various applications. The SW X NPT Threaded End allows for easy installation. Compliant with ISO 17292 standards, this valve is equipped with an RPTFE seat for reliable sealing. The lever operation provides convenient control. Choose our Floating Ball Valve for superior performance and peace of mind.

Categories Floating Ball Valve

Tags: 1 Inch Ball Valve , Class 800 LB Ball Valve , ASTM A105 Ball Valve .

Detail Information
1 inch, 800 LB, Floating Ball Valve, SW X NPT Threaded End, ISO 17292, A105 body with SS 316 Trim, RPTFE seat and lever operation

Valve Description:

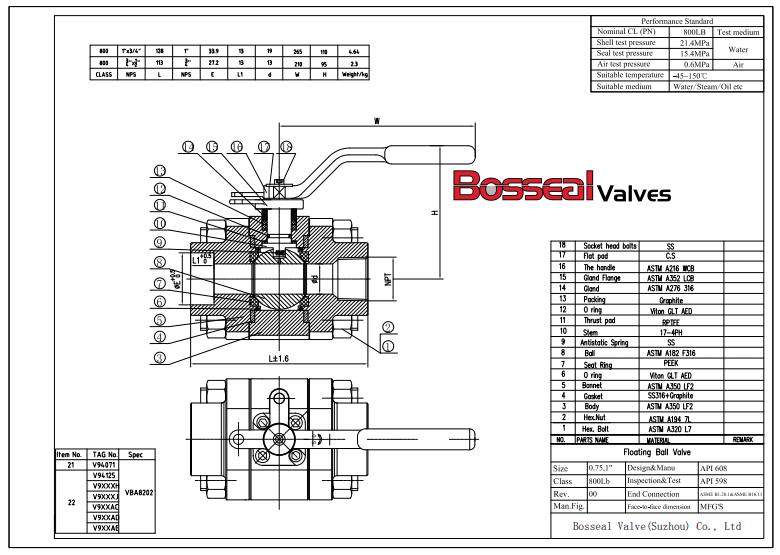

1812011 Floating Ball Valve 1BB8SNA105N
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1 Inch, DN25
Nominal class: 800 LB
Bore Type: Reduced Bore
End Connection: SW X NPT
Operation: Lever Lockable
Body Material: ASTM A105
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
