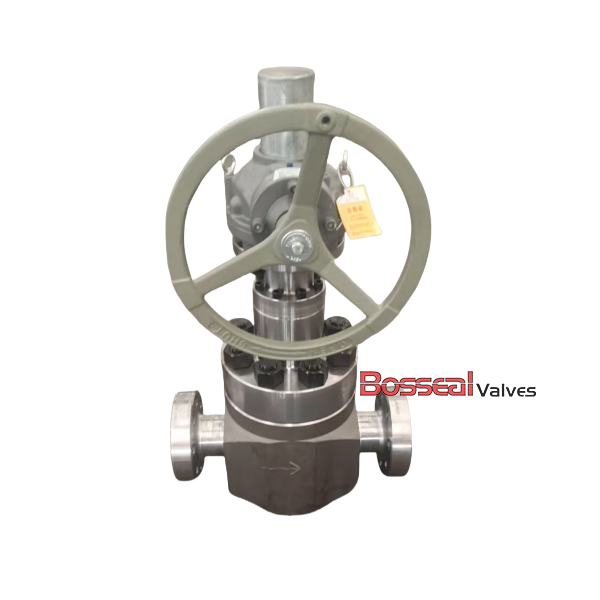

ASTM A694 F60 Globe Valve, 6-5/8 Inch, 5000 PSI, PSB, RTJ

Key Specifications / Features

Model No. : GLV-183103013

As a professional Pressure Seal Bonnet Globe Valve factory in China, we manufacture high-performance valves designed for critical service conditions. Featuring a durable body in ASTM A694 F60 or AISI 4130, these globe valves deliver strength and reliability under extreme pressure. Available in 6-5/8 inch size with a 5000 PSI rating, they ensure secure performance in demanding oil and gas operations. Trim options include 4140, F51 duplex, 17-4PH stainless steel, or Inconel for superior sealing and wear resistance. Designed with gear operation and RTJ end connections.


Detail Information

Valve Description:
183103013 API 6A Globe Valve
Design Standard: API 6A
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Bore Type: Standard
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
