Key Specifications / Features

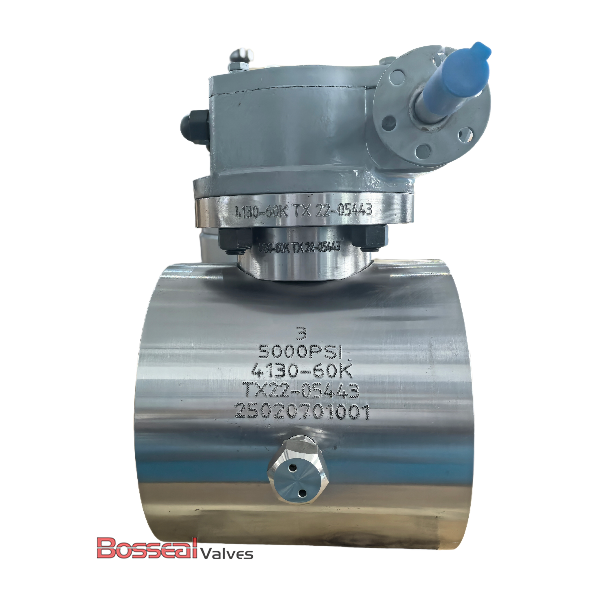

As a leading China alloy steel ball valve factory, we specialize in producing high-performance ball valves built to API 6D and API 6A standards. Crafted with durable F60, F65, or AISI 4130 alloy steel bodies, these valves ensure superior strength and reliability under demanding service conditions. The 4140, 17-4PH, or Inconel trims provide exceptional corrosion and wear resistance for long-term operation. Available in 6-1/8 inch sizes and rated for 3000 PSI, they feature soft or metal seats and RTJ or butt-weld ends, offering tight sealing and dependable flow control for oil, gas, and petrochemical applications.
Valve Description:
181105032 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
