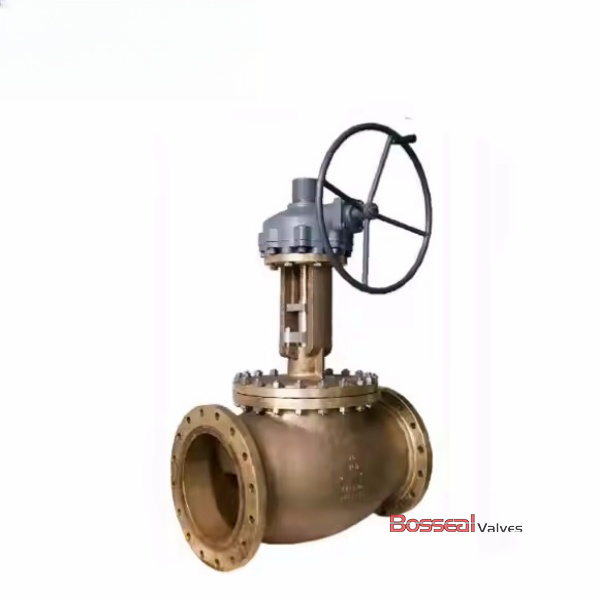

Aluminum Bronze C95800 Globe Valve, 30 IN, CL150, OS&Y, FF

Key Specifications / Features

Model no. : GLV-187305016

We are a reliable OS&Y globe valve supplier in China, offering high-quality valves designed to BS 1873 and API 623 standards. Our 30-inch globe valves are constructed from durable aluminum bronze ASTM B148 C95800, ensuring excellent resistance to seawater and corrosive media. With a Class 150 LB pressure rating, these valves feature a pressure seal bonnet for enhanced performance under pressure and FF/RF flanged ends for flexible installation. The OS&Y design provides visible stem operation, making our globe valves a dependable choice for marine and industrial applications requiring strength, reliability, and long-term service.

Detail Information

Valve Description:
187305016 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 30 Inch
Nominal Class: 150 LB
Bore Type: Standard Bore
Test and Inspection: API 598
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service


Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor


Name*
E-mail*
Rate*
Comments*

Next: Rising Stem Globe Valves, Al-bronze, C95800, 32 IN, CL150 LB

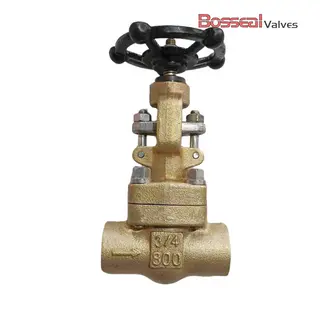

Previous: Aluminum Bronze Globe Valve, BS 1873, C95800, 28 Inches, PSB
