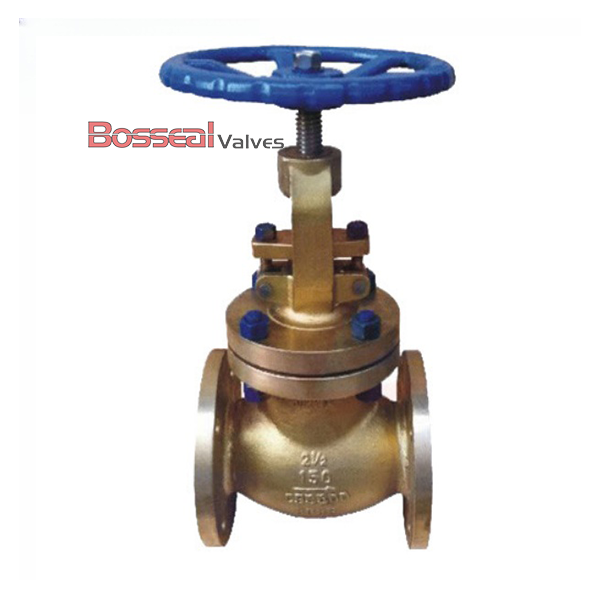

Pressure Seal Bonnet Globe Valve, C95800, 6 Inch, 150 LB, FF

Name: Pressure Seal Bonnet Globe Valve, C95800, 6 Inch, 150 LB, FF
SKU: glv-187305005
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305005

We are a leading manufacturer of pressure seal bonnet globe valves, engineered to meet BS 1873 and API 623 standards for reliable performance in critical applications. This 6-inch, Class 150 LB valve is constructed with a durable aluminum bronze body made from ASTM B148 C95800, offering excellent resistance to corrosion in marine, offshore, and industrial environments. The pressure seal bonnet ensures a tight, leak-proof closure under fluctuating pressures, while the gear-operated mechanism provides smooth and precise flow control. Available with flat face (FF) or raised face (RF) flanged ends for flexible installation options.

Request a quote

Tags:

Pressure Seal Bonnet Globe Valve

ASTM B148 C95800 Globe Valve

6 Inch Globe Valve

Detail Information

Valve Description:
187305005 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Nominal Size: 6 Inch, DN150
Nominal Class: 150 LB
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y configuration, screwed-in back seat, rising stem with non-rising handwheel, flexible wedge design, low emission construction, and corrosion-resistant aluminum bronze material ideal for seawater service.

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
