Aluminum Bronze Globe Valves, BS 1873, 12 Inch, CL150, OS&Y

Name: Aluminum Bronze Globe Valves, BS 1873, 12 Inch, CL150, OS&Y
SKU: glv-187305008
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305008

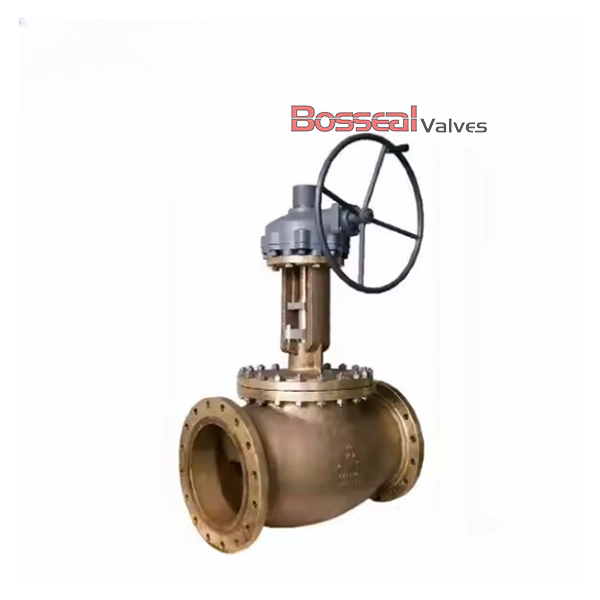

We are a specialized factory producing aluminum bronze globe valves designed to BS 1873 standards for high-performance flow control. This 12-inch, Class 150 LB valve features a durable body and trim made from corrosion-resistant ASTM B148 C95800, making it ideal for marine, offshore, and industrial applications. The bolted bonnet and OS&Y (outside screw and yoke) configuration ensure secure sealing, ease of operation, and simplified maintenance. Offered with flat face (FF) or raised face (RF) flanged ends, this globe valve delivers dependable performance in harsh environments where strength and corrosion resistance are critical.

Request a quote

Tags:

Aluminum bronze Globe Valve

BS 1873 Globe Valve

12 Inch Globe Valve

Detail Information

Valve Description:
187305008 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 12 Inch, DN300
Nominal Class: 150 LB
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y configuration, screwed-in back seat, rising stem with non-rising handwheel, flexible wedge design, low emission construction, and corrosion-resistant aluminum bronze material ideal for seawater service.

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
