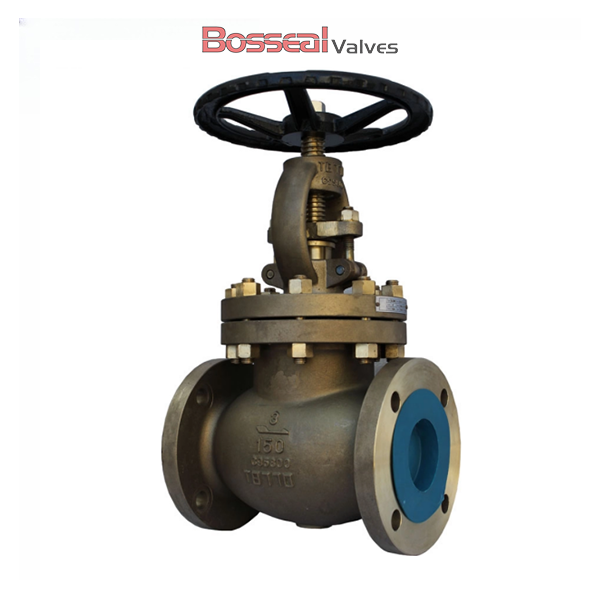

Pressure Seal Bonnet Globe Valves, Al-bronze, 14 IN, 150 LB

Name: Pressure Seal Bonnet Globe Valves, Al-bronze, 14 IN, 150 LB
SKU: glv-187305009
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305009

We are a leading manufacturer of pressure seal bonnet globe valves, built to BS 1873 and API 623 standards for reliable performance in demanding environments. This 14-inch, Class 150 LB valve features a robust aluminum bronze body made from ASTM B148 C95800, offering superior corrosion resistance for marine and industrial applications. The pressure seal bonnet ensures a tight, leak-resistant closure under varying pressures, while the handwheel operation allows for smooth and precise flow control. Available with flat face (FF) or raised face (RF) flanged ends, this valve delivers durability, efficiency, and long-term service.

Request a quote

Tags:

Pressure Seal Bonnet Globe Valve

Al-bronze Globe Valve

14 Inch Globe Valve

Detail Information

Valve Description:
187305009 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 14 Inch
Nominal Class: 150 LB
Body Material: ASTM B148 C95800
Bore Type: Standard Bore
Operation: Handwheel/Gear
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: FF or RF Flanged
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Al-bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor

Next: BS 1873 Aluminum Bronze Globe Valve, C95800, 16 IN, RF Flanged

Previous: Aluminum Bronze Globe Valves, BS 1873, 12 Inch, CL150, OS&Y

Similar Products

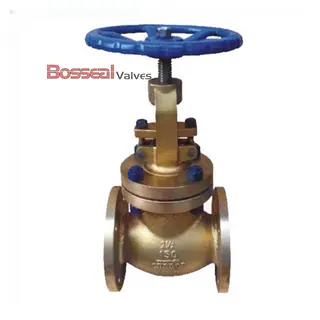

Pressure Seal Bonnet Globe Valve, C95800, 6 Inch, 150 LB, FF
