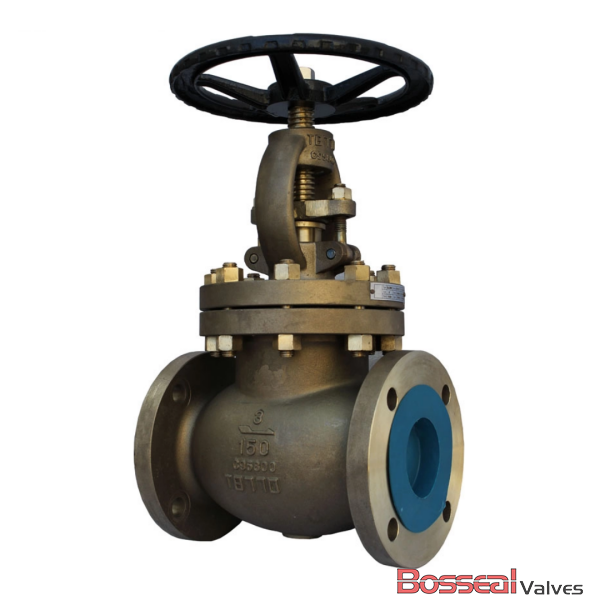

ASTM B148 C95800 Globe Valves, BS 1873, 20 IN, RF Flanged

Name: ASTM B148 C95800 Globe Valves, BS 1873, 20 IN, RF Flanged
SKU: glv-187305012
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305012

We are a reliable BS 1873 globe valve supplier from China, specializing in high-performance valves with aluminum bronze ASTM B148 C95800 body construction for superior corrosion resistance. Our 20-inch Class 150 LB globe valves feature RF flanged ends for easy installation, along with OS&Y design for safe and visible stem operation. Available with handwheel or gear operation, these valves ensure precise flow regulation in demanding marine and industrial environments. Designed for durability and efficiency, our valves are an excellent choice for corrosive service applications requiring long-term performance and minimal maintenance.

Request a quote

Tags:

ASTM B148 C95800 Globe Valve

BS 1873 Globe Valve

Aluminum bronze Globe Valve

Detail Information

Valve Description:
187305012 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Body Material: ASTM B148 C95800
Nominal Size: 20 Inch, DN500
Nominal Class: 150 LB, PN20
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Structure: Bolted Bonnet/Pressure Seal Bonnet
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598

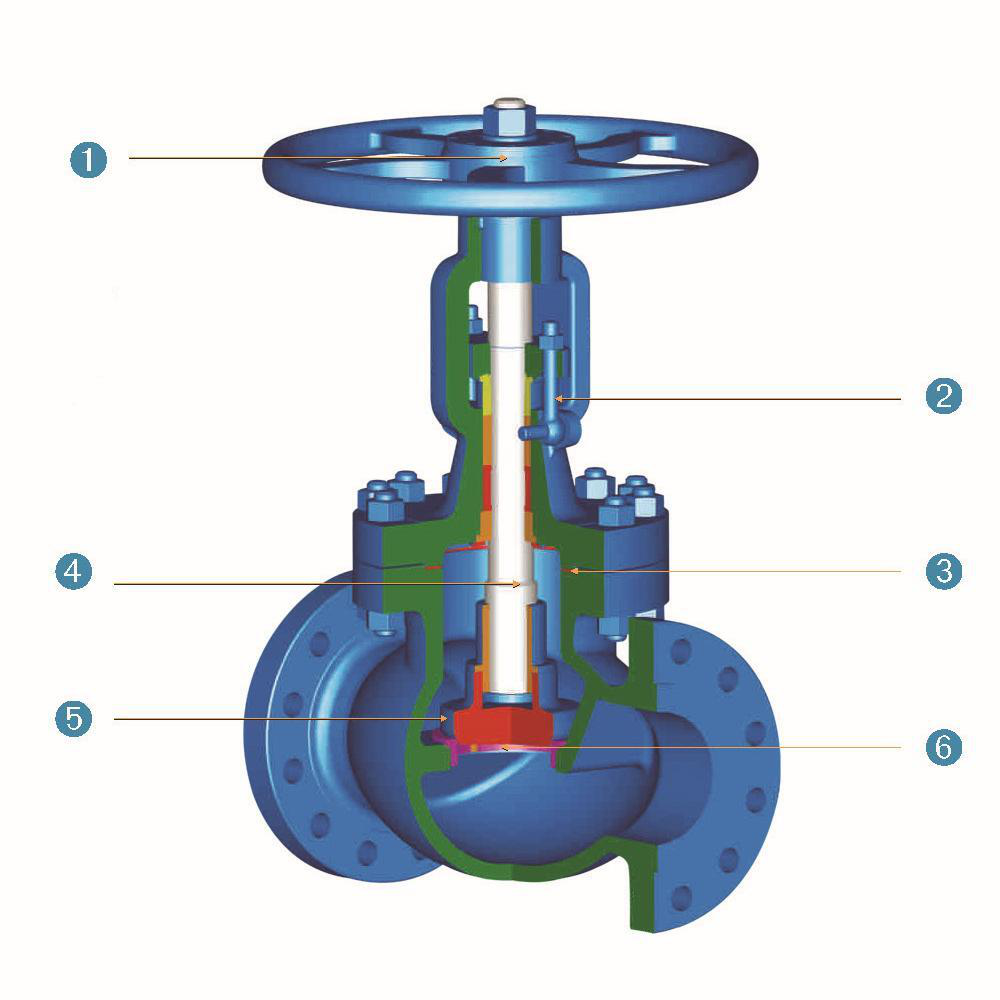

Key Features: OS&Y design, screwed-in back seat, rising stem with non-rising handwheel, flexible wedge for tight sealing, low emission construction, and durable aluminum bronze material ideal for seawater service.

Product Range:
Body Material: Al-bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor

Previous: API 623 Globe Valve, Aluminum Bronze C95800, 18 IN, CL150 LB

Similar Products

Aluminum Bronze Globe Valve, BS 1873, API 623, 3 Inch, OS&Y

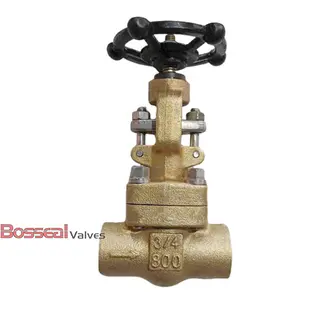

10 Inch Globe Valves, BS 1873, Aluminum Bronze, CL150 LB, RF

Aluminum Bronze Globe Valves, BS 1873, 12 Inch, CL150, OS&Y

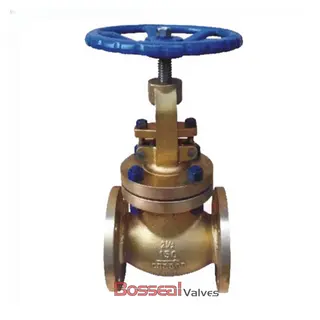

BS 1873 Aluminum Bronze Globe Valve, C95800, 16 IN, RF Flanged
