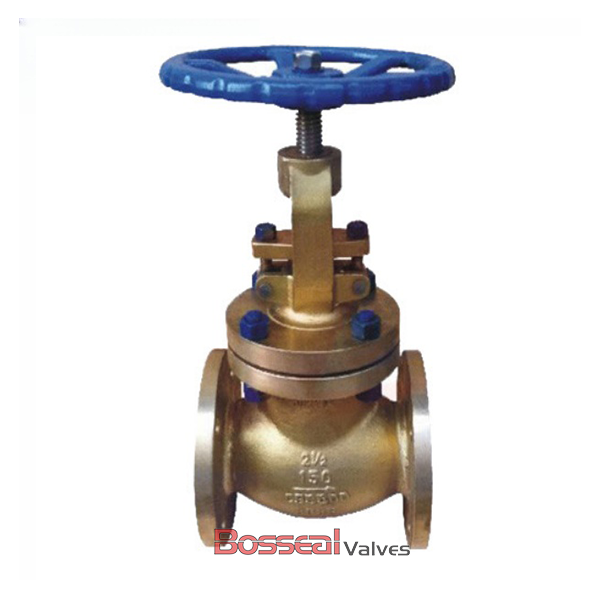

BS 1873 Aluminum Bronze Globe Valve, C95800, 16 IN, RF Flanged

Name: BS 1873 Aluminum Bronze Globe Valve, C95800, 16 IN, RF Flanged
SKU: glv-187305010
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305010

We are a trusted supplier of aluminum bronze globe valves engineered to BS 1873 and API 623 standards for dependable flow control. This 16-inch, Class 150 LB valve features a high-strength body and trim made from ASTM B148 C95800 aluminum bronze, ensuring excellent corrosion resistance in harsh environments such as marine and offshore applications. Designed for reliable performance and easy operation, it is available with either handwheel or gear operation. The RF flanged ends provide a secure and leak-resistant connection, making this valve ideal for demanding industrial fluid handling systems.

Request a quote

Tags:

BS 1873 Globe Valve

Aluminum bronze Globe Valve

ASTM B148 C95800 Globe Valve

Detail Information

Valve Description:
187305010 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 16 Inch, DN400
Nominal Class: 150 LB, PN20
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y configuration, screwed-in back seat, rising stem with non-rising handwheel, flexible wedge design, low emission construction, and corrosion-resistant aluminum bronze material ideal for seawater service.

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
